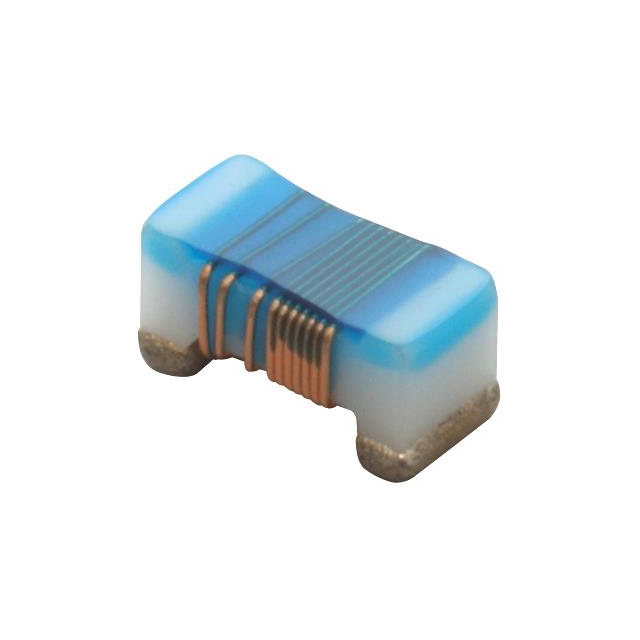

LQW18AN2N2C80D

Name: LQW18AN2N2C80D
Brand: Murata Electronics North America
SKU: 1327930
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LQW18AN2N2C80D
Manufacturer	Murata Electronics North America
Catalog	Fixed Inductors
Description	FIXED IND 2.2NH 3.2A 18 MOHM SMD / 2.2 nH Unshielded Wirewound Inductor 3.2 A 18mOhm Max 0603 (1608 Metric)
Datasheet	LQW18AN2N2C80D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Murata Electronics
Packaging	Reel - TR
Type	Wirewound
Material - Core	Non-Magnetic
Inductance	2.2 nH
Tolerance	±0.2nH
Current Rating (Amps)	3.2 A
Shielding	Unshielded
DC Resistance (DCR)	18mOhm Max
Q @ Freq	24 @ 250MHz
Frequency - Self Resonant	15GHz
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 MHz
Mounting	Surface Mount
Case / Package	0603 (1608 Metric)
Supplier Device Package	0603 (1608 Metric)
Size / Dimension	0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max)	0.039" (1.00mm)
Base Product Number	LQW18AN
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Part Number	490-14720-1,490-14720-2,LQW18AN2N2C80D-ND,490-14720-6
Standard Package	4,000
Win Source Part Number	1327930-LQW18AN2N2C80D
Ultra Librarian 3D Model	Ultra Librarian LQW18AN2N2C80D CAD Model

Alternative Products

Description

The Murata Electronics LQW18AN2N2C80D is a wirewound type fixed inductor with an inductance of 2.2 nH and a tolerance of ±0.2nH.

Shielding: Unshielded
Height: 0.039" (1.00mm) Max
Core Material: Non-Magnetic
Q @ Freq: 24 @ 250MHz
Frequency Self-Resonant: 15GHz
DC Resistance (DCR): 18mOhm Max
Current Rating: 3.2 A
Mounting Type: Surface Mount
Package: 0603 (1608 Metric)
Temperature Range: -55°C ~ 125°C
