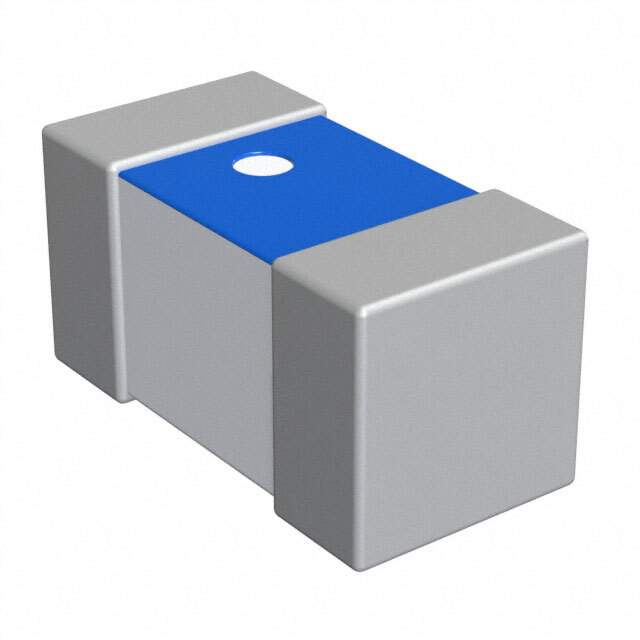

The LQP03TNR10J02D is a high-frequency inductor manufactured by Murata Electronics North America. It's part of the LQP03TN series, known for its small size and excellent high-frequency characteristics, making it ideal for various applications in miniaturized electronic devices.

Applications


• High-frequency circuits

• Mobile communication devices (smartphones, tablets)

• Wireless LAN modules

• Bluetooth modules

• RF filters

• Impedance matching circuits

Features


• Small Size: 0201 (0.6 x 0.3mm) size allows for high-density mounting.

• High Q Value: Provides excellent high-frequency characteristics, reducing signal loss.

• Tight Tolerance: Ensures stable performance in demanding applications.

• Excellent SRF: High Self-Resonant Frequency.

• RoHS Compliant: Environmentally friendly.

Benefits


• Miniaturization: Enables the design of smaller and more compact electronic devices.

• Improved Performance: High Q value minimizes signal loss, leading to better overall circuit performance.

• Stable Operation: Tight tolerance ensures consistent and reliable performance across different devices.

• Reduced Power Consumption: Efficient energy transfer due to high Q characteristics.

• Easy Integration: Designed for surface mount technology (SMT), simplifying the assembly process.

Technical Specifications

The LQP03TNR10J02D has an inductance value of 0.1 nH with a tolerance of ±5%. It features a high Q value, typically in the range of 12 at a test frequency of 500 MHz. Its Self-Resonant Frequency (SRF) is notably high, contributing to its excellent high-frequency performance. The operating temperature range typically spans from -55°C to +125°C, ensuring stable operation in diverse environmental conditions. This inductor is designed for surface mount technology (SMT) and comes in a 0201 package size. It’s ideal for applications demanding miniature components with high-frequency performance and tight tolerance.
