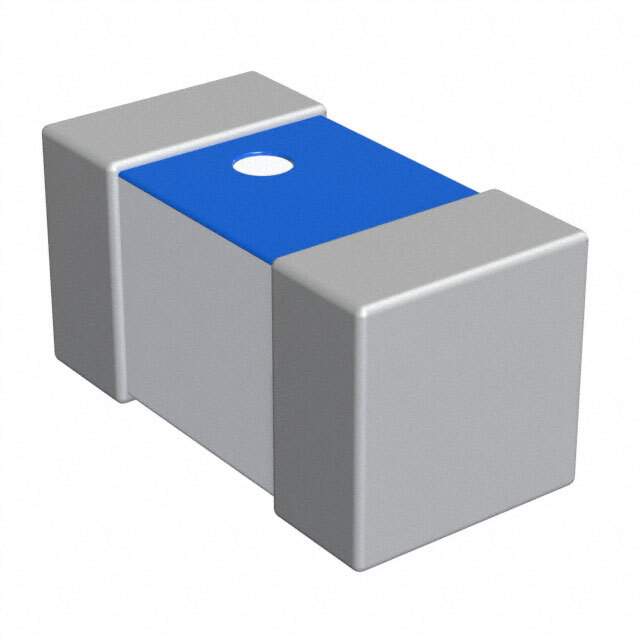

LQP03TG18NH02D

Name: LQP03TG18NH02D
Brand: Murata Electronics North America
SKU: 1328778
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LQP03TG18NH02D
Manufacturer	Murata Electronics North America
Catalog	Fixed Inductors
Description	FIXED IND 18NH 160MA 2.28OHM SMD / 18 nH Unshielded Thick Film Inductor 160 mA 2.28Ohm Max 0201 (0603 Metric)
Datasheet	LQP03TG18NH02D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Murata Electronics
Packaging	Reel - TR
Type	Thick Film
Material - Core	Non-Magnetic
Inductance	18 nH
Tolerance	±3%
Current Rating (Amps)	160 mA
Shielding	Unshielded
DC Resistance (DCR)	2.28Ohm Max
Q @ Freq	11 @ 500MHz
Frequency - Self Resonant	2.8GHz
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	500 MHz
Mounting	Surface Mount
Case / Package	0201 (0603 Metric)
Supplier Device Package	0201 (0603 Metric)
Size / Dimension	0.024" L x 0.012" W (0.60mm x 0.30mm)
Height - Seated (Max)	0.013" (0.33mm)
Base Product Number	LQP03TG
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Standard Package	15,000
Win Source Part Number	1328778-LQP03TG18NH02D
Ultra Librarian 3D Model	Ultra Librarian LQP03TG18NH02D CAD Model

Alternative Products

Description

Murata Electronics presents the LQP03TG18NH02D, a fixed inductor that is perfect for use in various electronic applications.

Shielding: Unshielded
Type: Thick Film
Core Material: Non-Magnetic
Tolerance: ±3%
Size: 0.024" L x 0.012" W (0.60mm x 0.30mm)
Height: 0.013" (0.33mm)
Inductance: 18 nH
DC Resistance (DCR): 2.28Ohm Max
Q @ Freq: 11 @ 500MHz
Frequency of Self-Resonant: 2.8GHz
Current Rating: 160 mA
Operating Temperature: -55°C to 125°C
Packaging: Reel - TR
Standard Package: 15,000
ROHS3 Compliant: Yes
