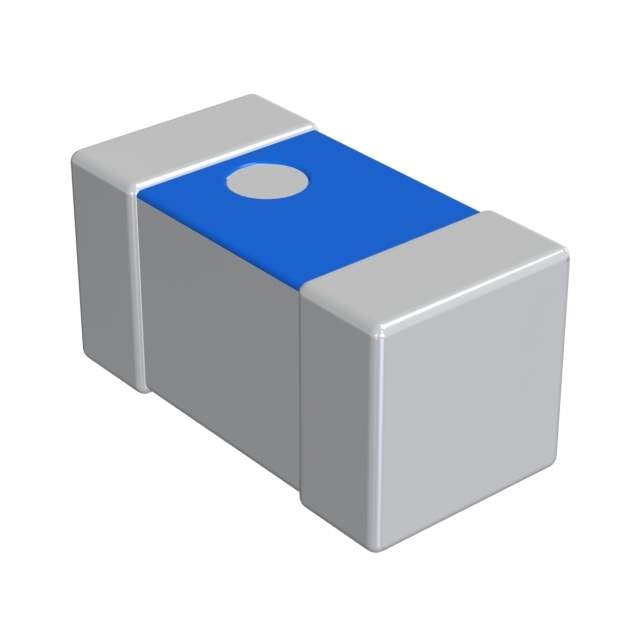

The LQP02TN3N6B02D is a high-frequency inductor from Murata Electronics, designed for use in small, low-profile electronic devices. This inductor is part of the LQP02 series, known for its excellent Q-factor and tight inductance tolerance, making it suitable for impedance matching and high-frequency circuit applications.

Applications

• Mobile Communication Devices: Used in impedance matching networks and RF filters within smartphones and other mobile devices.
• Wireless LAN Modules: Employed in Wi-Fi modules for signal filtering and impedance matching to optimize performance.
• Bluetooth Devices: Integrated into Bluetooth modules to enhance signal transmission and reception.
• High-Frequency Circuits: Suitable for use in various high-frequency applications requiring precise inductance values.
• RF Filters: Used in RF filter circuits to selectively pass or reject signals at specific frequencies.

Features

• Small Size: Features a compact 0201 (0603 metric) case size, making it suitable for space-constrained applications.
• High Q-Factor: Offers a high Q-factor, ensuring low energy loss and efficient performance in high-frequency circuits.
• Tight Inductance Tolerance: Provides a tight inductance tolerance, ensuring consistent and predictable performance.
• Excellent Self-Resonant Frequency (SRF): Possesses a high SRF, allowing for optimal performance at high frequencies.
• RoHS Compliant: Compliant with RoHS standards, ensuring environmental friendliness.

Benefits

• Improved Signal Quality: Enhances signal quality in wireless communication devices by providing efficient impedance matching.
• Reduced Power Consumption: Minimizes power loss in high-frequency circuits due to its high Q-factor.
• Stable Performance: Ensures stable and reliable performance across a wide range of operating conditions.
• Miniaturization: Enables the miniaturization of electronic devices due to its small size.
• Enhanced Reliability: Improves the overall reliability of electronic devices by providing stable inductance values.

Specifications

The LQP02TN3N6B02D has an inductance value of 3.6 nH, with a tolerance of ±0.1 nH. It is designed for high-frequency applications. Its compact size and tight tolerance make it a reliable choice for demanding applications. The operating temperature range is typically -55°C to +125°C.
