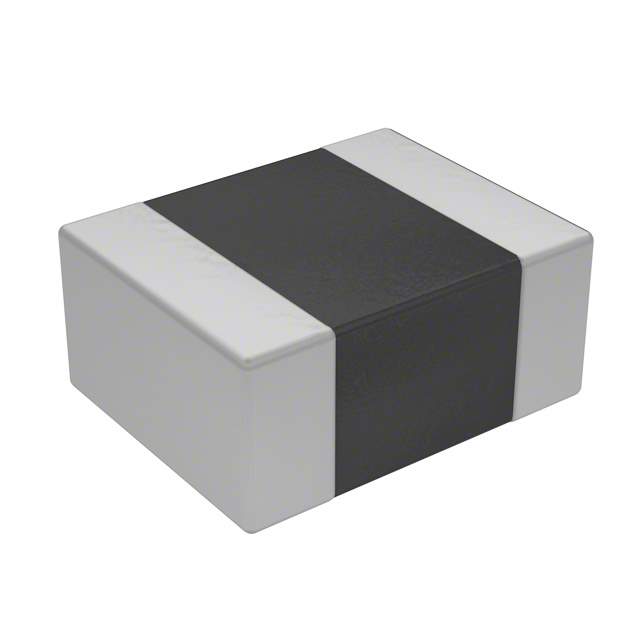

LQM2MPNR47NG0L Real Image
Same model may have multiple batches, images only for reference.

LQM2MPNR47NG0L

Part No LQM2MPNR47NG0L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 470NH 1.6A 60 MOHM SMD
Datasheet
LQM2MPNR47NG0L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Multilayer
Material - Core Ferrite
Inductance 470nH
Tolerance ±30%
Current Rating 1.6A
DC Resistance (DCR) 75 mOhm Max
Frequency - Self Resonant 100MHz
Temperature Range - Operating -55°C to 125°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Case / Package 0806 (2016 Metric)
Height - Seated (Max) 0.039" (1.00mm)
Win Source Part Number 114836-LQM2MPNR47NG0L
Ultra Librarian 3D Model Ultra Librarian LQM2MPNR47NG0L CAD Model

Description

The LQM2MPNR47NG0L is a multilayer inductor manufactured by Murata Electronics North America. It comes in an 0806 (2016 Metric) package and is designed for use in various electronic circuits.

  • Inductance: 470nH
  • Current Rating: 1.6A
  • Tolerance: ±30%
  • DC Resistance (DCR): 75 mOhm Max
  • Frequency Range: 1MHz to 100MHz
  • Height (Seated): 0.039" (1.00mm)
  • Material: Ferrite Core
  • Operating Temperature Range: -55°C to 125°C
  • Status: Active
