Same model may have multiple batches, images only for reference.

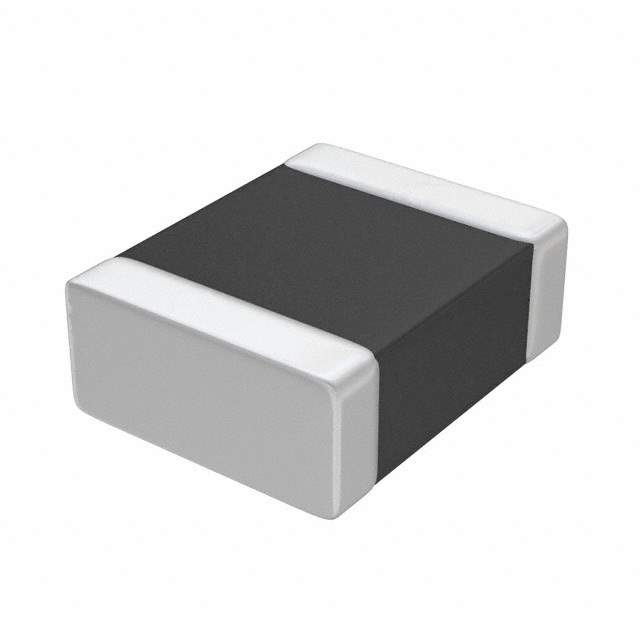

LQM2HPN1R0MJCL Real Image
Same model may have multiple batches, images only for reference.

LQM2HPN1R0MJCL

Part No LQM2HPN1R0MJCL
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 1UH 1.5A 86 MOHM SMD
Datasheet
LQM2HPN1R0MJCL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Type Multilayer
Inductance 1μH
Tolerance ±20%
Current Rating 1.5A
DC Resistance (DCR) 108 mOhm Max
Frequency - Self Resonant 50MHz
Temperature Range - Operating -55°C to 125°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Case / Package 1008 (2520 Metric)
Height - Seated (Max) 0.039" (1.00mm)
Win Source Part Number 041194-LQM2HPN1R0MJCL
Family Name LQM2HPN_JC
Introduction Date August 25, 2010
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LQM2HPN1R0MJCL CAD Model

Description

The Murata Electronics North America 041194-LQM2HPN1R0MJCL is a multilayer inductor.

  • Inductance: 1 μH
  • Current Rating: 1.5A
  • Tolerance: ±20%
  • DC Resistance: 108 mOhm Max
  • Self-Resonant Frequency: 50MHz
  • Height: 0.039" (1.00mm)
  • Temperature Range: -55°C to 125°C
  • Package: 1008 (2520 Metric)
  • Applications: Inductors, coils, and chokes
