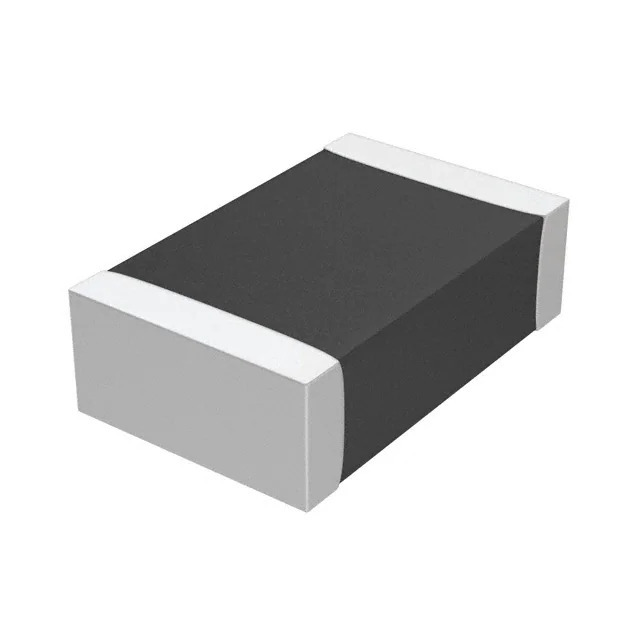

LQM21PNR47MGHL Murata Electronics North America
Same model may have multiple batches, images only for reference.

LQM21PNR47MGHL

Part No LQM21PNR47MGHL
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 470NH 3.1A 50 MOHM SMD
Datasheet
LQM21PNR47MGHL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Murata Electronics
Series LQM21
Package Tape & Reel
Product Status Active
Type Multilayer
Material - Core Ferrite
Inductance 470 nH
Tolerance ±20%
Current Rating (Amps) 3.1 A
Current - Saturation (Isat) 1.8A
Shielding Shielded
DC Resistance (DCR) 50mOhm Max
Q @ Freq -
Frequency - Self Resonant 80MHz
Ratings -
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 1 MHz
Features -
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805 (2012 Metric)
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.039" (1.00mm)
Base Product Number LQM21PN
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370142-LQM21PNR47MGHL
Ultra Librarian 3D Model Ultra Librarian LQM21PNR47MGHL CAD Model

Description

The LQM21PNR47MGHL is a multilayer inductor from Murata Electronics.

  • Series: LQM21
  • Package: 0805 (2012 Metric)
  • Temperature Range: -40°C to 85°C
  • Inductance: 470 nH
  • Current Rating: 3.1 A
  • Mounting Type: Surface Mount
  • Shielded: Yes
  • DC Resistance: 50mOhm max
  • Saturation Current: 1.8A
  • Size: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Height: 0.039" (1.00mm)
  • REACH Status: Unaffected
  • ECCN: EAR99
