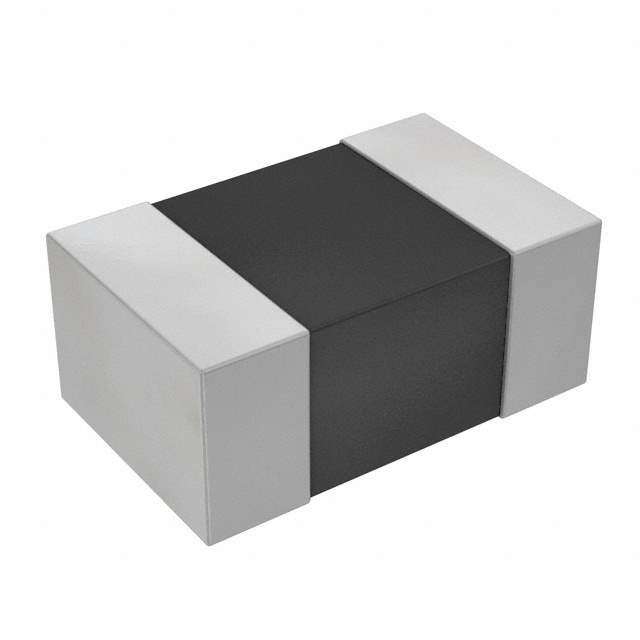

LQM21PN3R3MGRD Real Image
Same model may have multiple batches, images only for reference.

LQM21PN3R3MGRD

Part No LQM21PN3R3MGRD
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 3.3UH 1A 188 MOHM SMD
Datasheet
LQM21PN3R3MGRD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Multilayer
Material - Core Ferrite
Inductance 3.3μH
Tolerance ±20%
Current Rating 1A
DC Resistance (DCR) 188 mOhm Max
Frequency - Self Resonant 30MHz
Temperature Range - Operating -55°C to 125°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Case / Package 0805 (2012 Metric)
Height - Seated (Max) 0.039" (1.00mm)
Win Source Part Number 072062-LQM21PN3R3MGRD
Ultra Librarian 3D Model Ultra Librarian LQM21PN3R3MGRD CAD Model

Description

The LQM21PN3R3MGRD is a multilayer inductor from Murata Electronics.

  • Inductance: 3.3μH
  • Current Rating: 1A
  • Temperature Range: -55°C to 125°C
  • Applications: Power supplies, DC-DC converters, and filters
  • Package: Surface mount
  • Tolerance: ±20%
