Same model may have multiple batches, images only for reference.

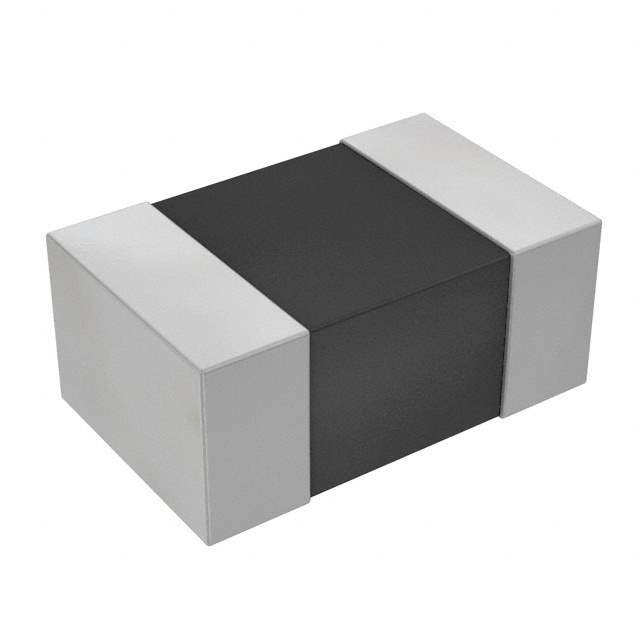

LQM21PN1R0NGCD Real Image
Same model may have multiple batches, images only for reference.

LQM21PN1R0NGCD

Part No LQM21PN1R0NGCD
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 1UH 900MA 100 MOHM SMD
Datasheet
LQM21PN1R0NGCD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Multilayer
Material - Core Ferrite
Inductance 1μH
Tolerance ±30%
Current Rating 900mA
DC Resistance (DCR) 125 mOhm Max
Frequency - Self Resonant 50MHz
Temperature Range - Operating -55°C to 125°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Case / Package 0805 (2012 Metric)
Height - Seated (Max) 0.039" (1.00mm)
Win Source Part Number 072059-LQM21PN1R0NGCD
Ultra Librarian 3D Model Ultra Librarian LQM21PN1R0NGCD CAD Model

Description

The LQM21PN1R0NGCD is a multilayer type fixed inductor manufactured by Murata Electronics North America.

  • Inductance: 1u00B5H
  • Current Rating: 900mA
  • Height: 0.039" (1.00mm)
  • Mounting Technology: SMD (SMT)
  • Tolerance: u00B130%
  • Material: Ferrite
  • Frequency Self-Resonant: 50MHz
  • Frequency Test: 1MHz
  • DC Resistance (DCR): 125 mOhm Max

This component is a reliable and high-quality product that delivers excellent performance in a variety of applications.
