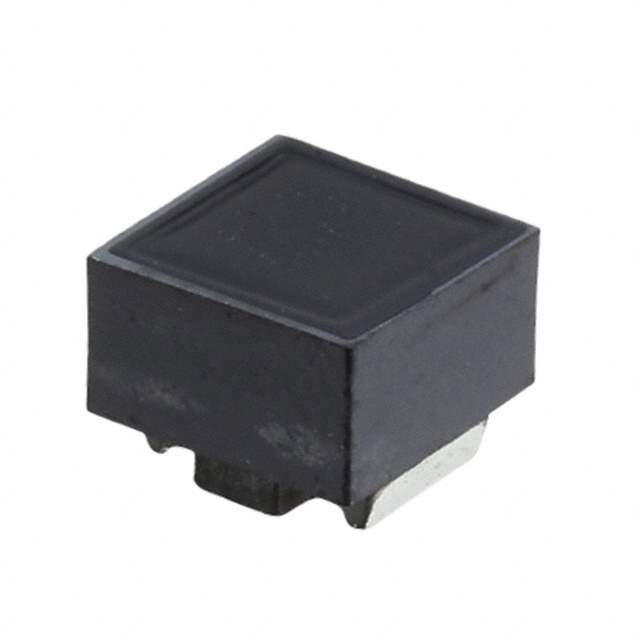

LQH66SN470M03L Real Image
Same model may have multiple batches, images only for reference.

LQH66SN470M03L

Part No LQH66SN470M03L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 47UH 760MA 170 MOHM
Datasheet
LQH66SN470M03L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 47μH
Tolerance ±20%
Current Rating 760mA
DC Resistance (DCR) 238 mOhm Max
Frequency - Self Resonant 10MHz
Temperature Range - Operating -40°C to 80°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.197" (5.00mm)
Win Source Part Number 072049-LQH66SN470M03L
Ultra Librarian 3D Model Ultra Librarian LQH66SN470M03L CAD Model

Description

The Murata Electronics North America LQH66SN470M03L is a surface mount, wirewound inductor designed for use in electronic circuits. It has an inductance of 47μH and a current rating of 760mA. The LQH66SN470M03L has a tolerance of ±20% and a DC resistance (DCR) of 238 mOhm Max. It is available in reel packaging and has a height of 0.197" (5.00mm). The wirewound inductor is compliant with halogen-free regulations and has a temperature range of -40°C to 80°C. It is commonly used in electronic circuits and has an active status in the market.
