Same model may have multiple batches, images only for reference.

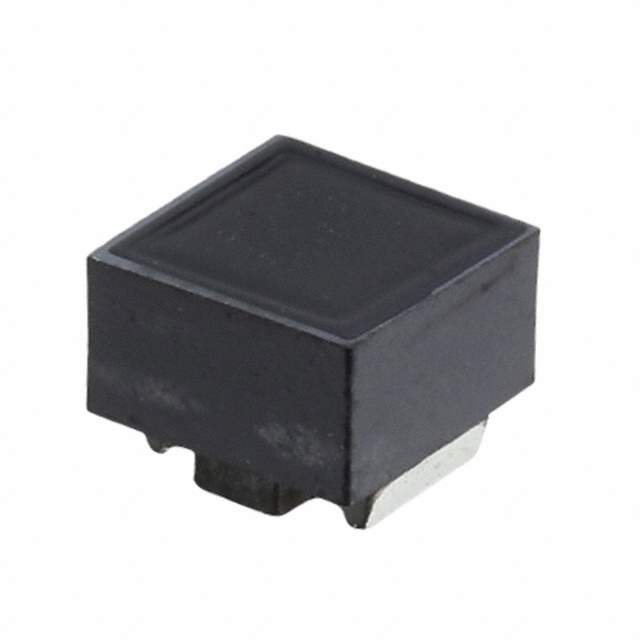

LQH66SN330M03L Real Image
Same model may have multiple batches, images only for reference.

LQH66SN330M03L

Part No LQH66SN330M03L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 33UH 860MA 196 MOHM
Datasheet
LQH66SN330M03L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 33μH
Tolerance ±20%
Current Rating 860mA
DC Resistance (DCR) 196 mOhm Max
Frequency - Self Resonant 12MHz
Temperature Range - Operating -40°C to 80°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.197" (5.00mm)
Win Source Part Number 019999-LQH66SN330M03L
Ultra Librarian 3D Model Ultra Librarian LQH66SN330M03L CAD Model

Description

The Murata Electronics North America 019999-LQH66SN330M03L is a wirewound type inductor with a current rating of 860mA and an inductance of 33μH. It has a height of 0.197" (5.00mm) and is mounted using SMD (SMT) technology. It has a tolerance of ±20% and is made of ferrite material. It has a self-resonant frequency of 12MHz and a test frequency of 1MHz. This product is categorized under inductors, coils, and chokes. It has a DC resistance (DCR) of 196 mOhm Max and is an active product. It has an operating temperature range of -40°C to 80°C and is supplied in reel packaging.
