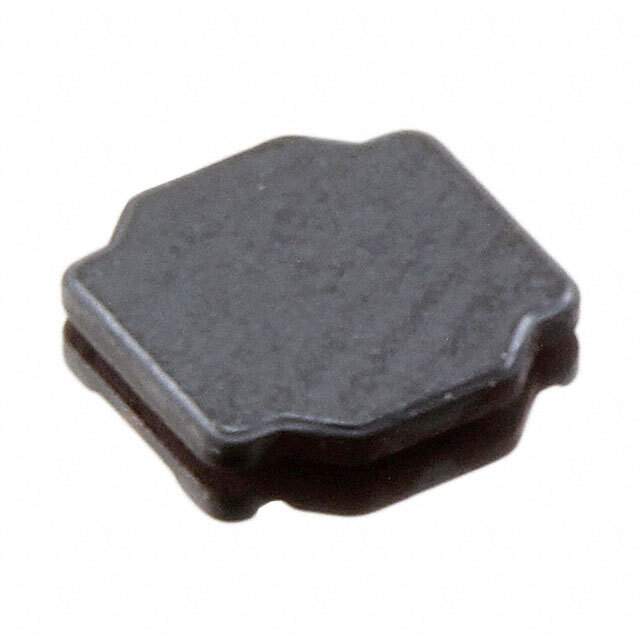

LQH44PN2R2MJ0L Real Image
Same model may have multiple batches, images only for reference.

LQH44PN2R2MJ0L

Part No LQH44PN2R2MJ0L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description Inductor Data sheet
Datasheet
LQH44PN2R2MJ0L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Series LQH44
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±20%
Current Rating 1.23A
Current - Saturation 1.32A
Shielding Shielded
DC Resistance (DCR) 88.8 mOhm Max
Frequency - Self Resonant 68MHz
Operating Temperature Range -40°C ~ 85°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Maximum) 0.047" (1.20mm)
Win Source Part Number 1204387-LQH44PN2R2MJ0L
Manufacturer Homepage www.murata.com
Family Name LQH44PN_J0
Introduction Date June 30, 2010
ECCN EAR99
Estimated EOL Date 2024
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LQH44PN2R2MJ0L CAD Model

Description

The Murata Electronics North America LQH44PN2R2MJ0L is a wirewound inductor with a 2.2μH inductance and a 1.23A current rating.

  • Inductance: 2.2μH
  • Current Rating: 1.23A
  • Tolerance: ±20%
  • Shielding: Shielded
  • Size: 0.157" L x 0.157" W (4.00mm x 4.00mm)
  • Seated Height: 0.047" (1.20mm)
  • Mounting Type: Surface Mount
  • Core Material: Ferrite
  • Category: Inductors, Coils, Chokes
  • DC Resistance (DCR): 88.8 mOhm Max
  • ECCN: EAR99
  • Estimated EOL Date: 2024
  • Supply and Demand Status: Balance
