Same model may have multiple batches, images only for reference.

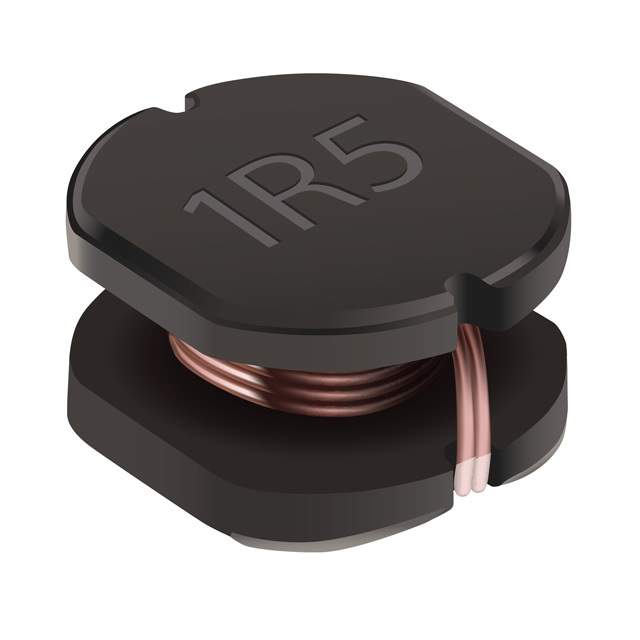

SDE1006A-4R7M Real Image
Same model may have multiple batches, images only for reference.

SDE1006A-4R7M

Part No SDE1006A-4R7M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDE1006A-4R7M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDE1006A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 4.7 A
Current - Saturation (Isat) 5.2A
Shielding Unshielded
DC Resistance (DCR) 36mOhm Max
Frequency - Self Resonant 37.4MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.394" L x 0.354" W (10.00mm x 9.00mm)
Height - Seated (Max) 0.228" (5.80mm)
Base Product Number SDE1006A
Other Names SDE1006A-4R7M,SDE1006A-4R7MTR,SDE1006A-4R7MCT,SDE1006A-4R7MDKR
Standard Package 800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274874-SDE1006A-4R7M
Ultra Librarian 3D Model Ultra Librarian SDE1006A-4R7M CAD Model

Description

The Bourns Inc. SDE1006A-4R7M is an electronic component that belongs to the category of inductors, coils, and chokes.

  • Series: SDE1006A
  • Type: Drum core, wirewound
  • Package: Tape and reel
  • Shielding: Unshielded
  • Inductance: 4.7 µH
  • Tolerance: ±20%
  • Core Material: Ferrite
  • DC Resistance (DCR): 36mOhm Max
  • Current Rating: 4.7 A
