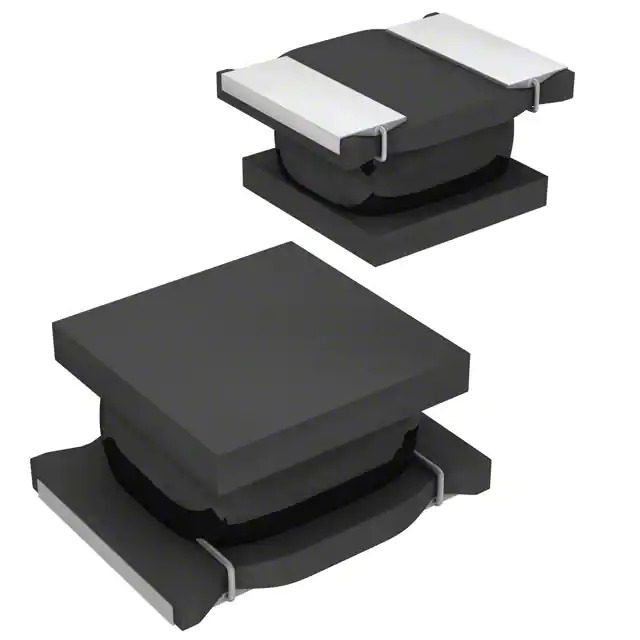

LQH3NPZ220MMEL Murata Electronics North America
Same model may have multiple batches, images only for reference.

LQH3NPZ220MMEL

Part No LQH3NPZ220MMEL
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 22UH 540MA 480MOHM SMD
Datasheet
LQH3NPZ220MMEL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Murata Electronics
Series LQH3
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 540 mA
Current - Saturation (Isat) 570mA
Shielding Shielded
DC Resistance (DCR) 480mOhm Max
Frequency - Self Resonant 10MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 1 MHz
Mounting Type Surface Mount
Package / Case 1212 (3030 Metric)
Supplier Device Package 1212 (3030 Metric)
Size / Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.059" (1.50mm)
Base Product Number LQH3NPZ
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370116-LQH3NPZ220MMEL
Ultra Librarian 3D Model Ultra Librarian LQH3NPZ220MMEL CAD Model

Description

The LQH3NPZ220MMEL is a drum core, wirewound inductor manufactured by Murata Electronics.

  • Inductance: 22 μH
  • Current Rating: 540 mA
  • Temperature Range: -40°C to 105°C
  • Tolerance: ±20%
  • Shielding: Shielded
  • DC Resistance: 480 mΩ max
  • Mounting Type: Surface Mountable
  • Package Size: 1212 (3030 Metric)
  • Dimensions: 0.118" L x 0.118" W (3.00mm x 3.00mm)
  • Series: LQH3
  • Status: Active
  • Packaging: Tape and Reel
