Same model may have multiple batches, images only for reference.

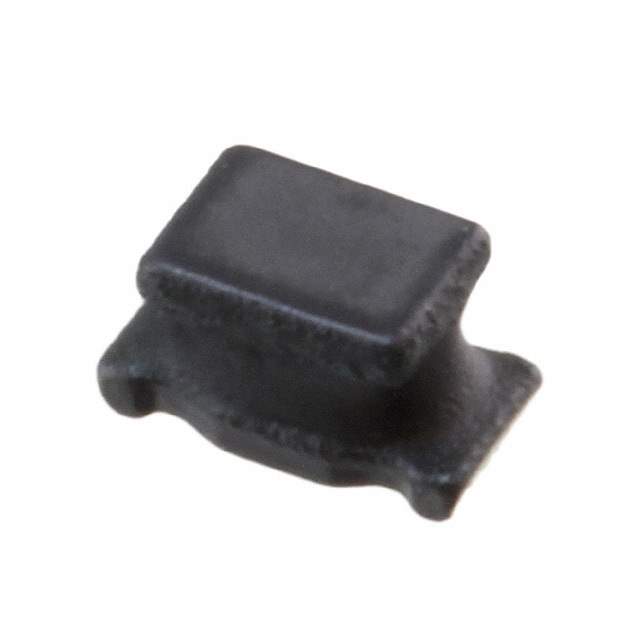

LQH31CN100K03L Real Image
Same model may have multiple batches, images only for reference.

LQH31CN100K03L

Part No LQH31CN100K03L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 10UH 230MA 1.3 OHM SMD
Datasheet
LQH31CN100K03L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 10μH
Tolerance ±10%
Current Rating 230mA
DC Resistance (DCR) 1.69 Ohm Max
Frequency - Self Resonant 20MHz
Temperature Range - Operating -40°C to 85°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Case / Package 1206
Height - Seated (Max) 0.079" (2.00mm)
Win Source Part Number 118483-LQH31CN100K03L
Ultra Librarian 3D Model Ultra Librarian LQH31CN100K03L CAD Model

Description

The Murata Electronics North America 118483-LQH31CN100K03L is a wirewound inductor with the following specifications:

  • Inductance: 10μH
  • Current Rating: 230mA
  • Core Material: Ferrite
  • Tolerance: ±10%
  • Test Frequency: 1MHz
  • Self-Resonant Frequency: 20MHz
  • DC Resistance (DCR): 1.69 Ohm Max
  • Operating Temperature Range: -40°C to 85°C
  • Mounting Type: SMD (SMT)
  • Height: 0.079" (2.00mm)
  • Package: Reel - TR
  • Applications: Filtering or energy storage in electronic devices
