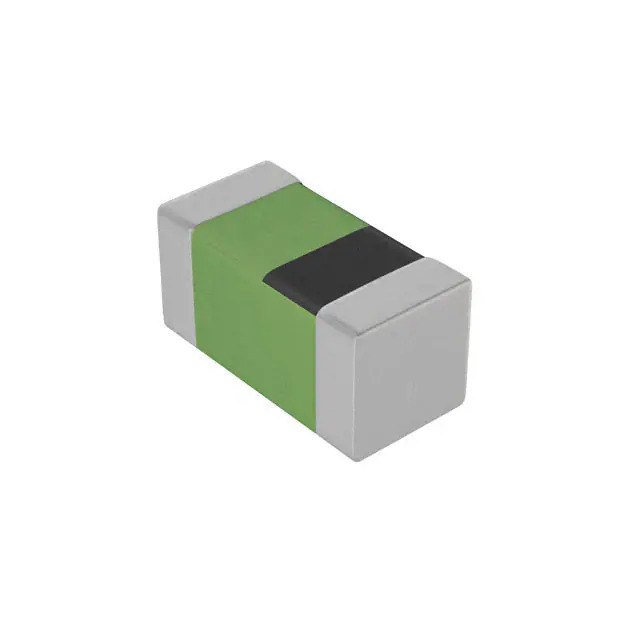

The Murata Electronics LQG15HZ4N7S02D is a fixed inductor from Murata Electronics. It belongs to the LQG15 series and comes in a 0402 (1005 Metric) package. This multilayer inductor has an inductance of 4.7 nH with a tolerance of ±0.3nH. It can handle a current rating of 700 mA and has a DC resistance (DCR) of 160mOhm max. The LQG15HZ4N7S02D is unshielded and has a Q value of 8 @ 100MHz. It operates in a temperature range of -55°C to 125°C, making it suitable for various applications. With its compact size of 0.039" L x 0.020" W (1.00mm x 0.50mm) and a height of 0.022" (0.55mm), it is easy to integrate into electronic circuits.

• Type: Fixed Inductor
• Series: LQG15
• Package: 0402 (1005 Metric)
• Inductance: 4.7 nH
• Tolerance: ±0.3nH
• Current Rating: 700 mA
• DC Resistance (DCR): 160mOhm max
• Shielding: Unshielded
• Q Value: 8 @ 100MHz
• Operating Temperature: -55°C to 125°C
• Size: 0.039" L x 0.020" W (1.00mm x 0.50mm)
• Height: 0.022" (0.55mm)
