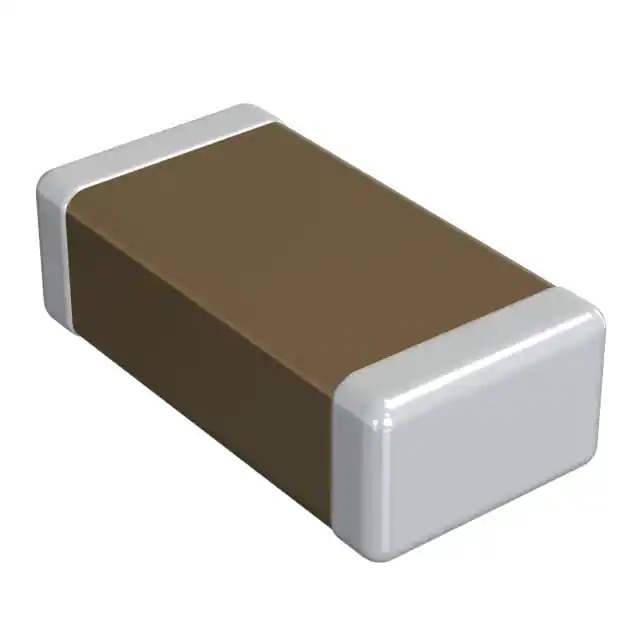

The GRM033R71E151JA01D is a ceramic capacitor manufactured by Murata Electronics North America. As part of the GRM series, it is known for its small size and reliable performance. This capacitor is designed for general-purpose applications, commonly used for decoupling and filtering in electronic circuits.

Applications

• Mobile phones and smartphones
• Wearable devices
• Wireless communication modules
• Consumer electronics
• Audio equipment
• Power supplies

Features

• Capacitance: 150 pF (Picofarads)
• Voltage rating: 25 VDC
• Temperature coefficient: X7R, indicating moderate capacitance change with temperature
• Tolerance: ±5%
• Size: 0201 (0.6mm x 0.3mm) - ultra-compact size for high-density mounting
• Termination: Sn (Tin) plating

Benefits

• Small size allows for high-density mounting, maximizing board space in compact devices.
• Stable performance ensures consistent circuit operation.
• Low equivalent series resistance (ESR) minimizes power losses, improving efficiency.
• RoHS compliant, meeting environmental regulations.

Additional Details

The GRM033R71E151JA01D utilizes a ceramic dielectric material, offering robust insulation and performance. The X7R temperature coefficient ensures reasonable capacitance stability over a wide range of operating temperatures, typically from -55°C to +125°C, with capacitance variations generally limited to ±15%. Its compact 0201 package allows for dense placement on circuit boards, making it ideal for miniaturized electronic devices. The tin-plated terminations ensure excellent solderability and resistance to oxidation, enhancing long-term reliability. Designed for automated assembly, it seamlessly integrates into high-volume manufacturing processes. The capacitor's reliable performance and small form factor make it a popular choice in various electronic applications, particularly in portable and wireless devices where space and stable performance are essential.
