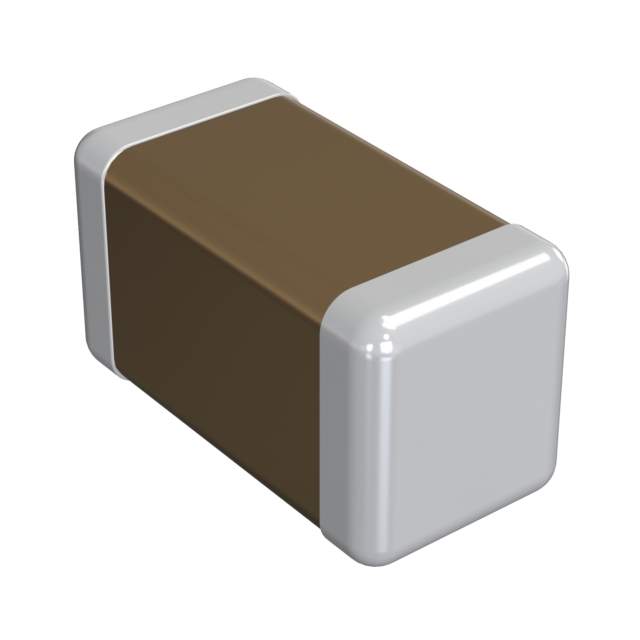

The GJM1555C1H3R6WB01D is a Murata Electronics North America ceramic capacitor designed for applications requiring stable and reliable performance at high frequencies. Part of the GJM series, it is known for its small size and excellent electrical characteristics. This component is commonly used in various electronic devices to ensure proper signal filtering and impedance matching.

Applications

• Smartphones and tablets
• Wireless communication devices (Bluetooth, Wi-Fi)
• RF modules
• High-frequency circuits
• Matching networks

Features

• Compact 0402 (1005 metric) package size
• 3.6 pF capacitance
• C0G temperature characteristic (low temperature coefficient)
• High Q factor
• Low ESR (Equivalent Series Resistance)
• RoHS compliant (lead-free)

Benefits

• Miniaturization: Small size allows for use in compact electronic devices.
• Stable performance: C0G dielectric ensures minimal capacitance change with temperature variations.
• Efficient signal transmission: High Q factor minimizes signal loss and improves circuit performance.
• Reduced power consumption: Low ESR minimizes energy dissipation in the capacitor.
• Environmentally friendly: RoHS compliance ensures the component is free of hazardous substances.

Technical Specifications

The GJM1555C1H3R6WB01D features a capacitance of 3.6 pF and a rated voltage of typically 50V. The C0G temperature characteristic provides a very stable capacitance over a wide temperature range, typically ±30 ppm/°C. Its small size (0402) allows for high-density mounting on printed circuit boards. It is designed to operate within a temperature range of -55°C to +125°C. The termination is typically a nickel barrier with tin plating, ensuring excellent solderability.
