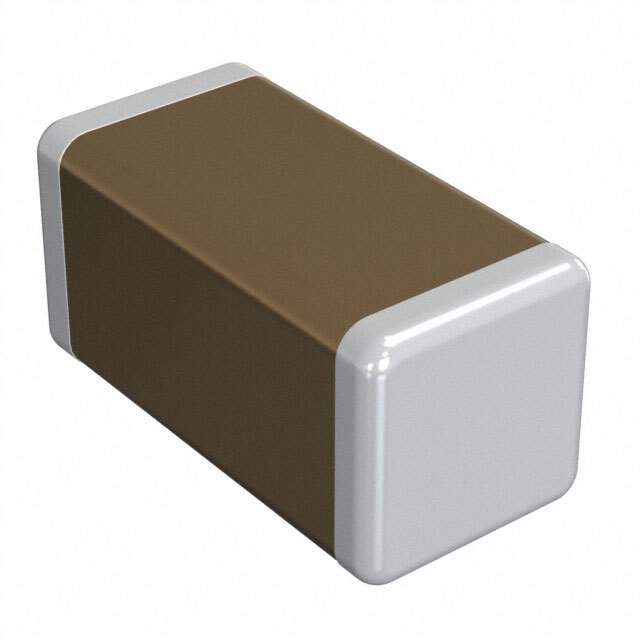

The GCJ31BR72E683KXJ1L is a ceramic capacitor manufactured by Murata Electronics North America. It is a high-quality, reliable component designed for various electronic applications. Ceramic capacitors are known for their stability, low ESR (Equivalent Series Resistance), and wide range of operating temperatures.

Applications

• Bypass Capacitors: Used to decouple power supply lines and reduce noise.
• Smoothing Capacitors: Filtering ripple voltage in power supplies.
• Timing Circuits: Employed in oscillator circuits and timing applications.
• Filtering Applications: Removing unwanted frequencies from electronic signals.
• Consumer Electronics: Commonly found in smartphones, tablets, and other portable devices.
• Automotive Electronics: Used in automotive control systems and entertainment systems.
• Industrial Equipment: Integrated into various industrial control and monitoring devices.

Features

• High Capacitance Value: 68nF (68000pF) capacitance provides a substantial charge storage capacity.
• Voltage Rating: Rated for 250V, suitable for medium voltage applications.
• Temperature Coefficient: Possesses a stable temperature coefficient, ensuring consistent performance over a wide temperature range.
• Compact Size: Small form factor allows for high-density circuit designs.
• RoHS Compliant: Meets environmental regulations regarding hazardous substances.
• X7R Dielectric: X7R dielectric provides stable performance over temperature and voltage.

Benefits

• Stable Performance: X7R dielectric ensures minimal capacitance variation with temperature changes.
• Reduced Noise: Effective decoupling capability minimizes noise and interference in electronic circuits.
• Long Lifespan: Ceramic capacitors offer excellent reliability and long operational life.
• Space Saving: Compact size allows for efficient use of PCB space.
• Improved Circuit Performance: Contributes to the overall stability and reliability of electronic devices.
• Wide Operating Temperature: Suitable for use in harsh environments with varying temperatures.

Additional Details

The GCJ31 series from Murata is designed for general-purpose applications. The specific dimensions for the 1206 package are approximately 3.2mm x 1.6mm. The capacitance tolerance is ±10%. The operating temperature range is typically -55°C to +125°C. The capacitor is constructed with a ceramic dielectric material and utilizes a nickel barrier termination suitable for soldering. This component is commonly used in high-volume manufacturing due to its reliability and cost-effectiveness. The Murata GCJ series is known for its high quality and consistent performance in various electronic applications.
