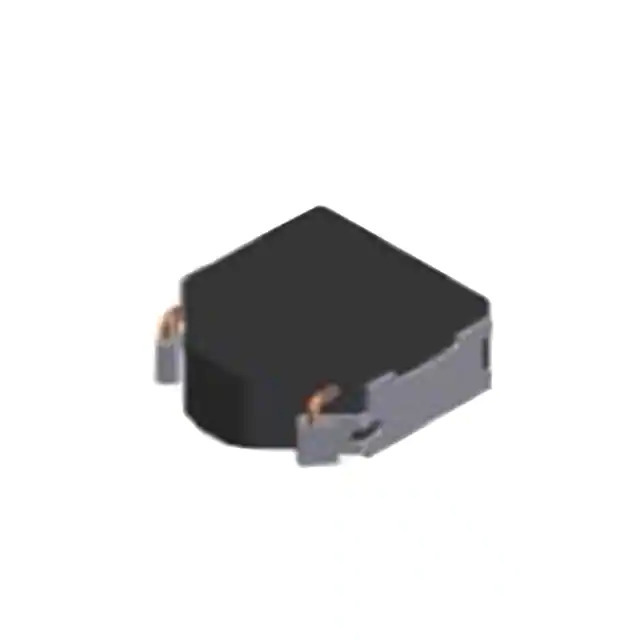

Same model may have multiple batches, images only for reference.
FDSD0518-H-1R0M=P3 Murata Electronics North America
Same model may have multiple batches, images only for reference.

FDSD0518-H-1R0M=P3

Part No FDSD0518-H-1R0M=P3
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 1UH 6.1A 21 MOHM SMD
Datasheet
FDSD0518-H-1R0M=P3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Murata Electronics
Series FDSD0518
Package Tape & Reel
Product Status Last Time Buy
Type Drum Core, Wirewound
Material - Core Metal
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 6.1 A
Current - Saturation (Isat) 8.7A
Shielding Shielded
DC Resistance (DCR) 21mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.205" L x 0.193" W (5.20mm x 4.90mm)
Height - Seated (Max) 0.071" (1.80mm)
Base Product Number FDSD0518
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1370102-FDSD0518-H-1R0M=P3
Ultra Librarian 3D Model Ultra Librarian FDSD0518-H-1R0M=P3 CAD Model

Description

The FDSD0518-H-1R0M=P3 is a fixed inductor from Murata Electronics.

  • Series: FDSD0518
  • Inductance: 1μH
  • Type: Wirewound
  • Shielding: Shielded
  • Operating Temperature: Not Specified
  • Package / Case: Nonstandard
  • Size / Dimension: 0.205" L x 0.193" W (5.20mm x 4.90mm)
  • Height - Seated (Max): 0.071" (1.80mm)
  • Current Rating: 6.1A
  • DC Resistance (DCR) (Max): 21mOhm max
  • Mounting Type: Surface Mount
  • Packaging: Tape and Reel
  • ECCN: EAR99
  • Core Material: Metal
  • Lifecycle Status: Last Time Buy
