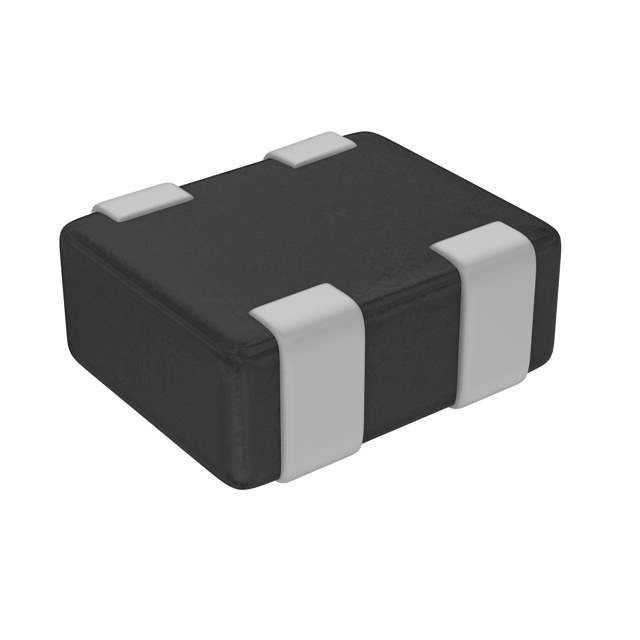

DLM0NSN500HY2D Real Image
Same model may have multiple batches, images only for reference.

DLM0NSN500HY2D

Part No DLM0NSN500HY2D
Manufacturer Murata Electronics North America
Catalog Common Mode Chokes
Description CMC 100MA 2LN 50 OHM SMD / 2 Line Common Mode Choke Surface Mount 50 Ohms @ 100 MHz 100mA DCR 3.375Ohm
Datasheet
DLM0NSN500HY2D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Manufacturer Murata Electronics
Packaging Reel - TR
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 50 Ohms @ 100 MHz
Current Rating (Max) 100mA
DC Resistance (DCR) (Max) 3.375Ohm
Voltage Rating - DC 5V
Temperature Range - Operating -40°C ~ 85°C
Mounting Surface Mount
Size / Dimension 0.033" L x 0.026" W (0.85mm x 0.65mm)
Height (Max) 0.020" (0.50mm)
Case / Package 0302 (0806 Metric), 4 Lead
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number 490-DLM0NSN500HY2DCT,490-DLM0NSN500HY2DTR,490-DLM0NSN500HY2DDKR
Standard Package 10,000
Win Source Part Number 1328225-DLM0NSN500HY2D
Ultra Librarian 3D Model Ultra Librarian DLM0NSN500HY2D CAD Model

Description

The DLM0NSN500HY2D is a common mode choke from Murata Electronics that is designed for signal line filtering.

  • Mounting: Surface mount
  • Size: 0.033" L x 0.026" W (0.85mm x 0.65mm)
  • Height: 0.020" (0.50mm)
  • Voltage Rating: 5V
  • Current Rating: 100mA
  • Lines: 2
  • Impedance: 50 Ohms @ 100 MHz
  • DC Resistance: 3.375Ohm
  • Temperature Range: -40°C to 85°C
  • Compliance: ROHS3
  • MSL Level: 1 (Unlimited)
  • Package: 0302 (0806 Metric), 4 Lead
  • Packaging: Tape and reel
