Same model may have multiple batches, images only for reference.

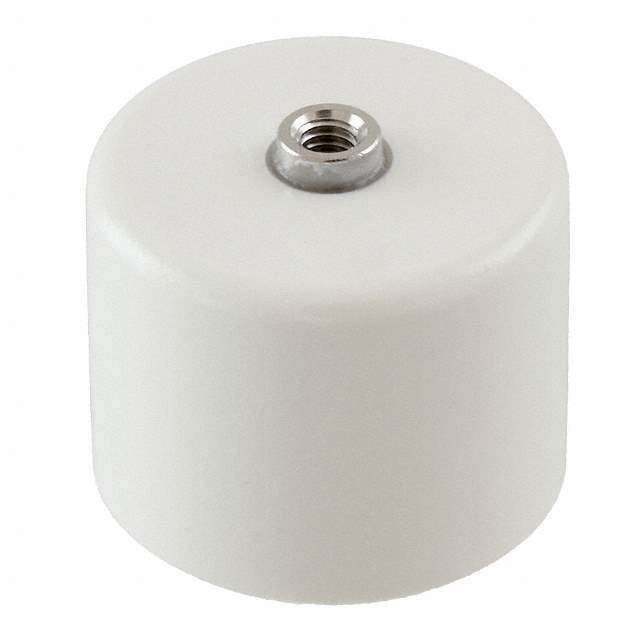

DHS4E4F941MLXB Real Image
Same model may have multiple batches, images only for reference.

DHS4E4F941MLXB

Part No DHS4E4F941MLXB
Manufacturer Murata Electronics North America
Catalog Ceramic Capacitors
Description CAP CER 940PF 30KV N4700 DISK / 940 pF ±20% 30000V (30kV) Ceramic Capacitor N4700 Disk, Metal Fitting - Threaded
Datasheet
DHS4E4F941MLXB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr Murata Electronics
Series DHS
Package Box
Product Status Obsolete
Capacitance 940 pF
Tolerance ±20%
Voltage - Rated 30000V (30kV)
Temperature Coefficient N4700
Temperature Range - Operating 20°C ~ 85°C
Features High Voltage
Applications General Purpose
Mounting Type Requires Holder
Package / Case Disk, Metal Fitting - Threaded
Size / Dimension 1.496" Dia x 1.161" L (38.00mm x 29.50mm)
Base Product Number DHS4E4F
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.23.0060
Win Source Part Number 1337169-DHS4E4F941MLXB
Ultra Librarian 3D Model Ultra Librarian DHS4E4F941MLXB CAD Model

Description

The DHS series ceramic capacitor from Murata Electronics is a high voltage component designed for general purpose applications.

  • Capacitance: 940 pF
  • Voltage Rating: 30 kV
  • Package: Threaded Metal Fitting
  • Diameter: 1.496 inches
  • Length: 1.161 inches
  • Operating Temperature: 20°C to 85°C
  • Mounting: Holder Required
  • Tolerance: ±20%
  • Temperature Coefficient: N4700
  • Status: Obsolete
