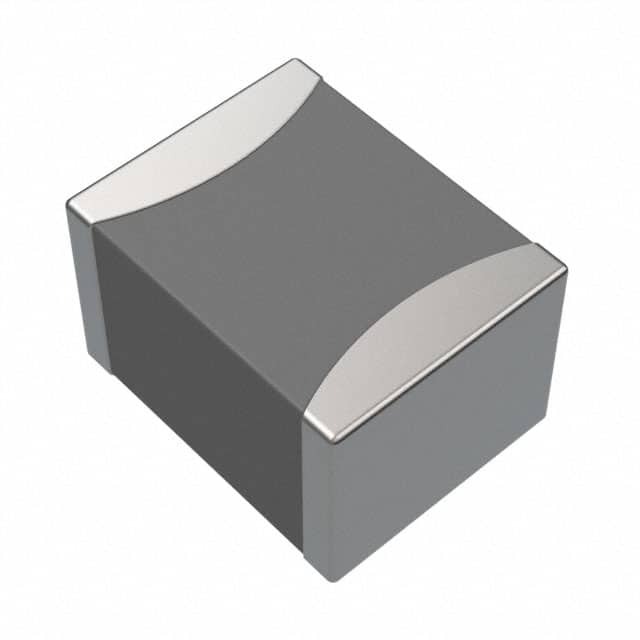

DFE322512F-100M=P2 Murata Electronics North America
Same model may have multiple batches, images only for reference.

DFE322512F-100M=P2

Part No DFE322512F-100M=P2
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 10UH 1.1A 324MOHM SMD / 10 µH Shielded Drum Core, Wirewound Inductor 1.1 A 324mOhm Max 1210 (3225 Metric)
Datasheet
DFE322512F-100M=P2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Murata Electronics
Series DFE322512F
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Metal
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 1.1 A
Current - Saturation (Isat) 1.7A
Shielding Shielded
DC Resistance (DCR) 324mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case 1210 (3225 Metric)
Supplier Device Package 1210
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.047" (1.20mm)
Base Product Number DFE322512F
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names ,490-DFE322512F-100M=P2DKR,DFE322512F-100M=P2-ND,490-DFE322512F-100M=P2CT,490-DFE322512F-100M=P2TR
Standard Package 3,000
Win Source Part Number 1055422-DFE322512F-100M=P2
Ultra Librarian 3D Model Ultra Librarian DFE322512F-100M=P2 CAD Model

Description

The 1055422-DFE322512F-100M=P2 is a fixed inductor designed for use in various applications.

  • Inductor Type: drum core, wirewound
  • Shielding: shielding feature
  • Inductance: 10 µH
  • Maximum Seated Height: 0.047 inches (1.20mm)
  • Package: tape and reel
  • Temperature Range: -40°C to 125°C
  • DC Resistance (DCR): 324mOhm Max
  • Current Rating: 1.1 A
  • Inductance Frequency: 1 MHz
