Same model may have multiple batches, images only for reference.

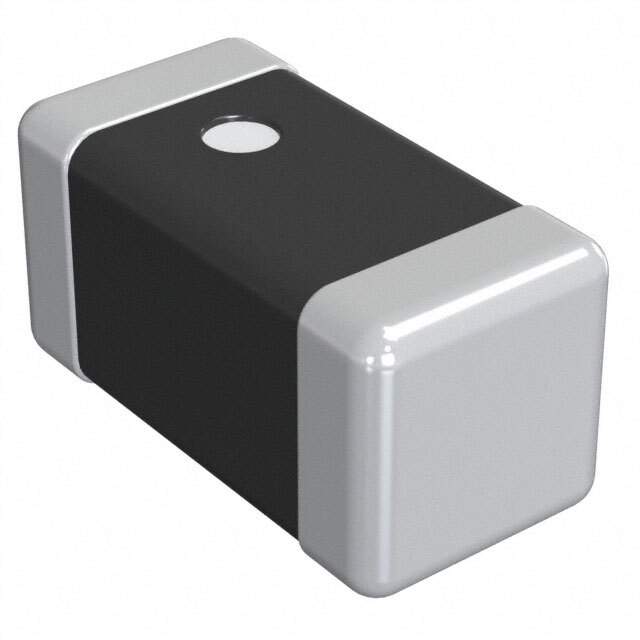

DFE18SANR47MG0L Real Image
Same model may have multiple batches, images only for reference.

DFE18SANR47MG0L

Part No DFE18SANR47MG0L
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 470NH 2.6A 54 MOHM SMD / 470 nH Shielded Inductor 2.6 A 54mOhm Max 0603 (1608 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Murata Electronics
Packaging Reel - TR
Material - Core Metal
Inductance 470 nH
Tolerance ±20%
Current Rating (Amps) 2.6 A
Current - Saturation (Isat) 3.6A
Shielding Shielded
DC Resistance (DCR) 54mOhm Max
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 1 MHz
Mounting Surface Mount
Case / Package 0603 (1608 Metric)
Supplier Device Package 0603 (1608 Metric)
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.039" (1.00mm)
Base Product Number DFE18SAN
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 490-16581-6,490-16581-2,490-16581-1
Standard Package 3,000
Win Source Part Number 1328815-DFE18SANR47MG0L
Ultra Librarian 3D Model Ultra Librarian DFE18SANR47MG0L CAD Model

Description

The Murata Electronics fixed inductor with the Win Source Part Number of 1328815-DFE18SANR47MG0L is a shielded inductor that is designed to provide a high level of inductance of 470 nH.

  • Inductance: 470 nH
  • DC Resistance: 54 mOhm
  • Mounting Type: Surface Mount
  • Maximum Seated Height: 0.039"
  • Size: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • Current Rating: 2.6 A
  • Saturation Current: 3.6 A
  • Tolerance: ±20%
  • Core Material: Metal
  • Operating Temperature Range: -40°C to 85°C
  • Packaging: Reel
  • Standard Package: 3,000 units
  • Supplier Device Package: 0603 (1608 Metric)
  • ROHS3 Compliant: Yes
