Same model may have multiple batches, images only for reference.

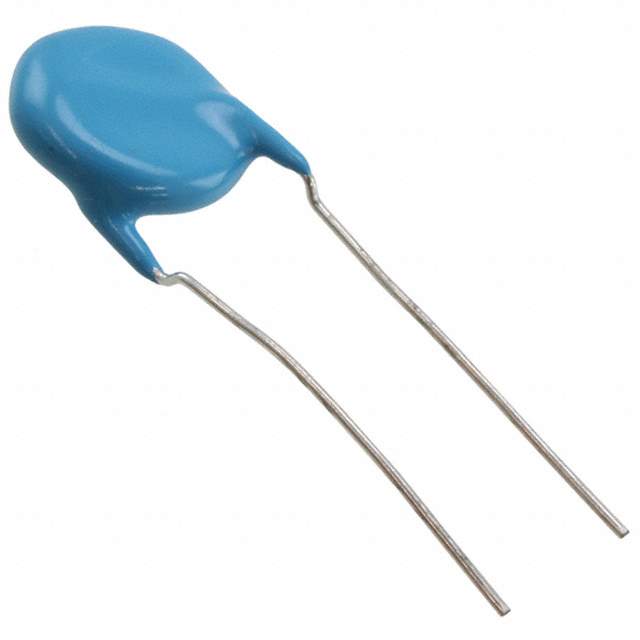

DE2B3SA681KN3AY02F Real Image
Same model may have multiple batches, images only for reference.

DE2B3SA681KN3AY02F

Part No DE2B3SA681KN3AY02F
Manufacturer Murata Electronics North America
Catalog Ceramic Capacitors
Description CAP CER 680PF 400V RADIAL / 680 pF ±10% 400VAC Ceramic Capacitor B Radial, Disc
Datasheet
DE2B3SA681KN3AY02F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr Murata Electronics
Series DE2
Package Cut Tape (CT) Tape & Box (TB)
Capacitance 680 pF
Tolerance ±10%
Voltage - Rated 400VAC
Temperature Coefficient B
Temperature Range - Operating -40°C ~ 125°C
Ratings X1, Y2
Applications Safety
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.433" (11.00mm)
Lead Spacing 0.295" (7.50mm)
Lead Style Straight
Base Product Number DE2B3SA
Standard Package 900
MSL Level Not Applicable
ECCN EAR99
HTSUS 8532.24.0060
Win Source Part Number 1351754-DE2B3SA681KN3AY02F
Ultra Librarian 3D Model Ultra Librarian DE2B3SA681KN3AY02F CAD Model

Description

The DE2B3SA681KN3AY02F is a ceramic capacitor from Murata Electronics.

  • Package: Cut Tape (CT) or Tape & Box (TB)
  • Diameter: 0.315" (8.00mm)
  • Capacitance: 680 pF
  • Voltage - Rated: 400VAC
  • Tolerance: ±10%
  • Temperature Coefficient: B
  • Style: Radial, Disc
  • Lead Spacing: 0.295" (7.50mm)
  • Ratings: X1, Y2
  • Operating Temperature: -40°C ~ 125°C
