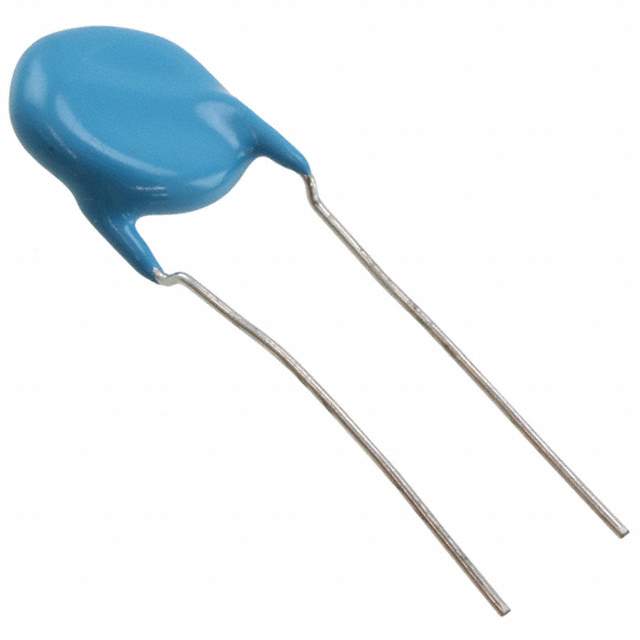

DE1E3KX472MN5AA01 Real Image
Same model may have multiple batches, images only for reference.

DE1E3KX472MN5AA01

Part No DE1E3KX472MN5AA01
Manufacturer Murata Electronics North America
Catalog Ceramic Capacitors
Description CAP CER 4700PF 250V RADIAL / 4700 pF ±20% 250VAC Ceramic Capacitor E Radial, Disc
Datasheet
DE1E3KX472MN5AA01 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr Murata Electronics
Series KX
Package Cut Tape (CT)
Product Status Obsolete
Capacitance 4700 pF
Tolerance ±20%
Voltage - Rated 250VAC
Temperature Coefficient E
Temperature Range - Operating -40°C ~ 125°C
Features Flame Retardant
Ratings X1, Y1
Applications Safety
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.591" Dia (15.00mm)
Height - Seated (Max) 0.748" (19.00mm)
Lead Spacing 0.394" (10.00mm)
Lead Style Straight
Base Product Number DE1E3KX
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Other Names DE1E3KX472MN5AA01-ND,490-6013-1,490-6013-3
Standard Package 500
Win Source Part Number 1186280-DE1E3KX472MN5AA01
Ultra Librarian 3D Model Ultra Librarian DE1E3KX472MN5AA01 CAD Model

Description

The KX ceramic capacitor is part of the KX series and is designed for safety applications.

  • Series: KX series
  • Features: flame retardant
  • Capacitance: 4700 pF
  • Tolerance: ±20%
  • Voltage Rating: 250VAC
  • Temperature Coefficient: E
  • Rating: X1 and Y1
  • Packaging: cut tape
  • Seated Height: 0.748" (19.00mm)
  • Lead Spacing: 0.394" (10.00mm)
  • Mounting: through-hole
  • Package/Case: radial, disc
  • Operating Temperature Range: -40°C to 125°C
  • Manufacturer: Murata Electronics
