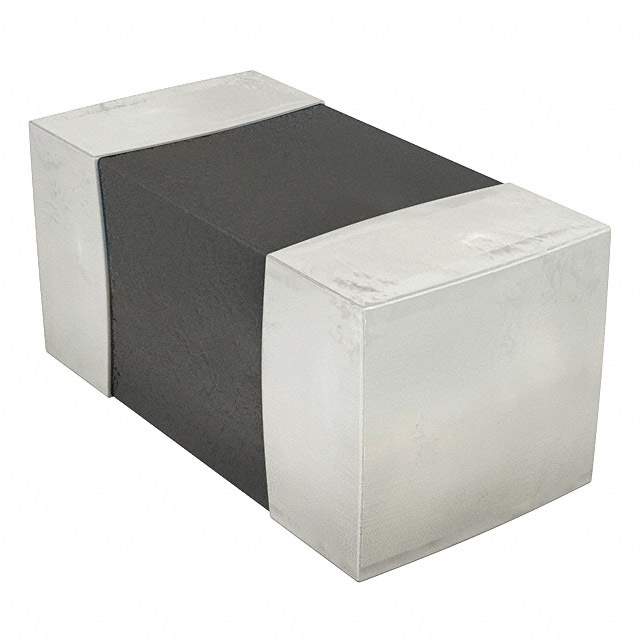

BLM15PX800SN1D Real Image
Same model may have multiple batches, images only for reference.

BLM15PX800SN1D

Part No BLM15PX800SN1D
Manufacturer Murata Electronics North America
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 80 OHM 0402 1LN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Murata Electronics North America
Packaging Reel
Filter Type Power Line
Number of Lines 1
Impedance at Frequency 80 Ohms at 100MHz
Current Rating (Maximum) 2.3A
DC Resistance (DCR) (Maximum) 38mOhm
Temperature Range - Operating -55°C ~ 125°C
Manufacturer Package 0402 (1005 Metric)
Mounting Style SMD
Height (Maximum) 0.022" (0.55mm)
Parts Dimension 0.039" L x 0.022" W (1.00mm x 0.55mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 730080-BLM15PX800SN1D
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BLM15PX800SN1D CAD Model

Description

The BLM15PX800SN1D filter is a power line filter that is used in a wide range of electronic applications from Murata Electronics North America.

  • Current Rating (Maximum): 2.3A
  • DC Resistance (DCR) (Maximum): 38mOhm
  • Package Type: reel
  • Mounting Style: SMD
  • Number of Lines: 1
  • Categories: filters
  • Temperature Range: -55°C to 125°C
  • Manufacturer Package: 0402 (1005 Metric)
  • Height (Maximum): 0.022" (0.55mm)
  • Supply and Demand Status: balanced
  • Impedance @ Frequency: 80 Ohms @ 100MHz
