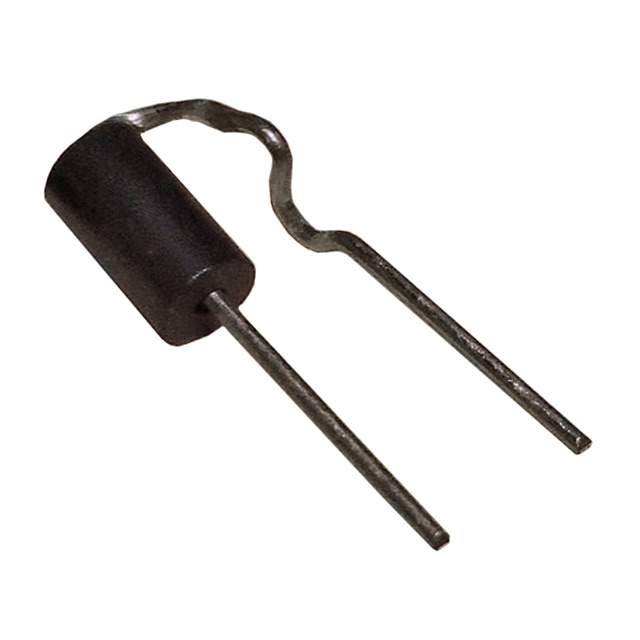

The BL02RN1R2M2B is a ferrite bead from Murata Electronics North America, designed for noise suppression in electronic circuits. This component effectively attenuates high-frequency noise, preventing it from interfering with the operation of sensitive circuitry.

Applications

• Noise suppression in power supply lines.
• Filtering of high-frequency noise in signal lines.
• Electromagnetic Interference (EMI) reduction in electronic devices.
• Decoupling in digital circuits.
• Suppression of ringing and overshoot in signal lines.
• Noise filtering in audio circuits.

Features

• Compact Size: Allows for use in densely populated circuit boards.
• High Impedance at High Frequencies: Effectively attenuates noise signals.
• Low DC Resistance: Minimizes power loss in the circuit.
• Excellent Noise Suppression Characteristics: Provides significant noise reduction across a wide frequency range.
• Surface Mount Technology (SMT): Facilitates automated assembly.
• RoHS Compliant: Ensures environmental compliance.

Benefits

• Improved Signal Integrity: Reduces noise and interference, resulting in cleaner signals.
• Enhanced System Performance: Prevents noise from affecting the operation of sensitive circuits.
• Reduced EMI: Minimizes electromagnetic emissions, helping to meet regulatory requirements.
• Increased Reliability: Protects circuits from damage due to noise spikes.
• Simplified Design: Easy to implement in various circuit designs.

Additional Details

The BL02RN1R2M2B has an impedance of 1.2 Ohms at 100 MHz. It features a low DC resistance to minimize power loss, typically less than 0.1 Ohms. The operating temperature range is generally from -55°C to +125°C. This ferrite bead is designed for reflow soldering and is suitable for a wide range of applications where noise suppression is critical. Its small size and excellent performance make it an ideal choice for modern electronic devices.
