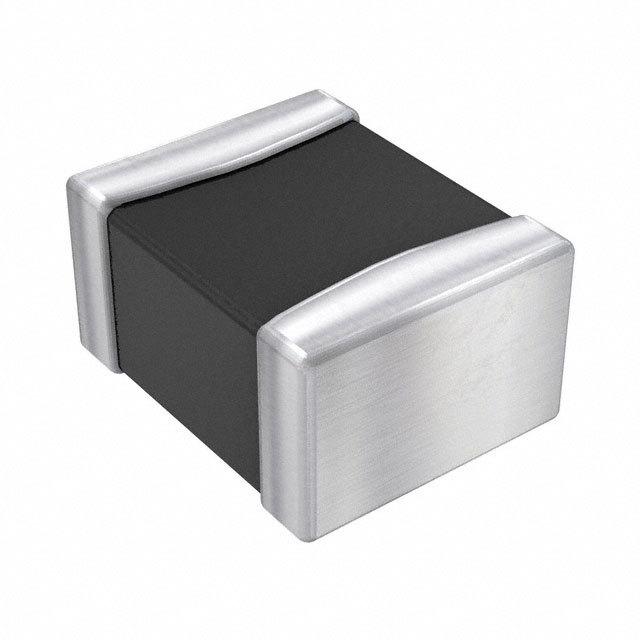

Same model may have multiple batches, images only for reference.
1286AS-H-R47M=P2 Murata Electronics North America
Same model may have multiple batches, images only for reference.

1286AS-H-R47M=P2

Part No 1286AS-H-R47M=P2
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 470NH 3.4A 52 MOHM SMD
Datasheet
1286AS-H-R47M=P2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Series DFE201612C
Packaging Reel package
Type Wirewound
Material - Core Powdered Iron
Inductance 470nH
Tolerance ±20%
Current Rating 3.4A
Shielding Shielded
DC Resistance (DCR) 52 mOhm Max
Operating Temperature Range -40°C ~ 85°C
Test Frequency 1MHz
Mounting SMD
Package 0806 (2016 Metric)
Manufacturer Package 0806 (2016 Metric)
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Maximum) 0.047" (1.20mm)
Win Source Part Number 760345-1286AS-H-R47M=P2
Popularity Medium
Supply and Demand Status Limited
Family Name DFE201612C
ECCN EAR99
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 1286AS-H-R47M=P2 CAD Model

Description

The Murata Electronics North America DFE201612C series inductor is a wirewound type with a shielding feature.

  • Inductance: 470nH
  • Tolerance: ±20%
  • Current Rating: 3.4A
  • DC Resistance: 52 mOhm max
  • Operating Temperature: -40°C to 85°C
  • Core Material: Powdered Iron
  • Package Size: 0806 (2016 Metric)
  • Dimensions: 0.079" L x 0.063" W (2.00mm x 1.60mm)
  • Height: 0.047" (1.20mm)
  • Applications: Inductors, Coils, Chokes
