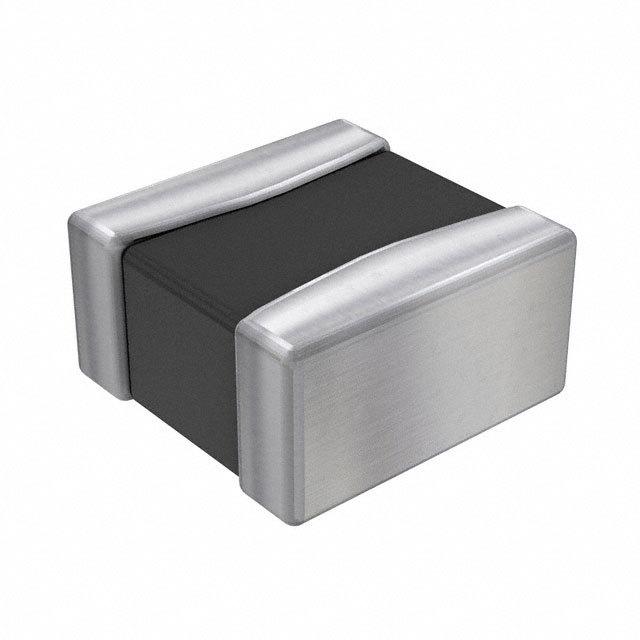

1285AS-H-R56M=P2 Murata Electronics North America
Same model may have multiple batches, images only for reference.

1285AS-H-R56M=P2

Part No 1285AS-H-R56M=P2
Manufacturer Murata Electronics North America
Catalog Fixed Inductors
Description FIXED IND 560NH 2.8A 59 MOHM SMD
Datasheet
1285AS-H-R56M=P2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Murata Electronics North America
Series DFE201610C
Packaging Reel package
Type Wirewound
Material - Core Powdered Iron
Inductance 560nH
Tolerance ±20%
Current Rating 2.8A
Shielding Shielded
DC Resistance (DCR) 59 mOhm Max
Operating Temperature Range -40°C ~ 85°C
Test Frequency 1MHz
Mounting SMD
Package 0805
Manufacturer Package 0806 (2016 Metric)
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Maximum) 0.039" (1.00mm)
Win Source Part Number 760342-1285AS-H-R56M=P2
Popularity Medium
Supply and Demand Status Limited
Family Name DFE201610C
ECCN EAR99
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 1285AS-H-R56M=P2 CAD Model

Description

The Murata Electronics North America 760342-1285AS-H-R56M=P2 is a wirewound type inductor component that has a medium popularity and limited supply and demand status.

  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Series: DFE201610C
  • Package: 0805
  • Current Rating: 2.8A
  • Shielding: Yes
  • Inductance: 560nH
  • Mounting Type: SMD
  • Maximum DCR: 59 mOhm
  • ECCN: EAR99
  • Estimated EOL Date: 2028
