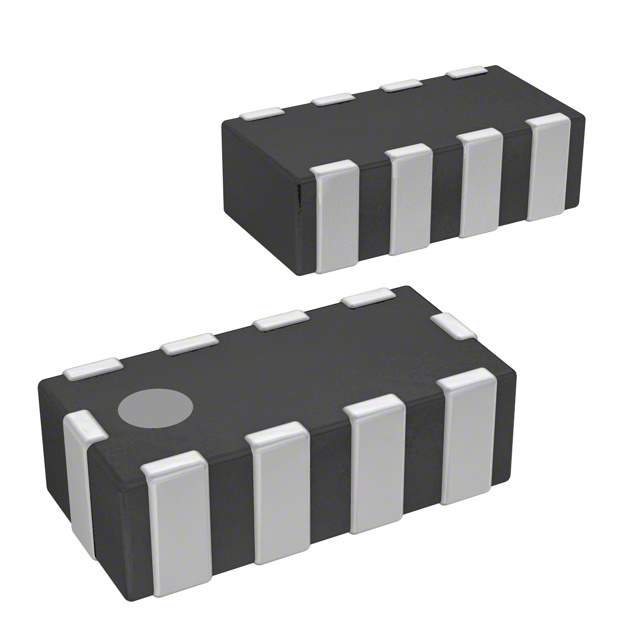

MEA1608L75R0TA0G Real Image
Same model may have multiple batches, images only for reference.

MEA1608L75R0TA0G

Part No MEA1608L75R0TA0G
Manufacturer TDK Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC 75MHZ SMD
Datasheet
MEA1608L75R0TA0G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer TDK Corporation
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 1st
Technology LC
Number of Channels 4
Center / Cutoff Frequency 75MHz (Cutoff)
Attenuation Value 20dB @ 600MHz to 2GHz
Current 100mA
ESD Protection No
Temperature Range - Operating -40°C to 85°C
Applications Data Lines for Mobile Devices
Voltage Rating 6.3V
Mounting SMD (SMT)
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height 0.024" (0.60mm)
Win Source Part Number 023171-MEA1608L75R0TA0G
Ultra Librarian 3D Model Ultra Librarian MEA1608L75R0TA0G CAD Model

Description

The TDK MEA1608L75R0TA0G is a low pass filter with a center/cutoff frequency of 75MHz (cutoff) and an attenuation value of 20dB @ 600MHz to 2GHz.

  • Voltage Rating: 6.3V
  • Current: 100mA
  • Attenuation Value: 20dB @ 600MHz to 2GHz
  • Center/Cutoff Frequency: 75MHz (cutoff)
  • Channels: 4
  • Technology: LC
  • Suitable for: data lines for mobile devices
  • Mounting: SMD (SMT)
  • Packaging: reel-TR
  • Height: 0.024" (0.60mm)
  • Filter Type: Active
  • Temperature Range: -40°C to 85°C
  • Dimension: 0.063" L x 0.031" W (1.60mm x 0.80mm)
