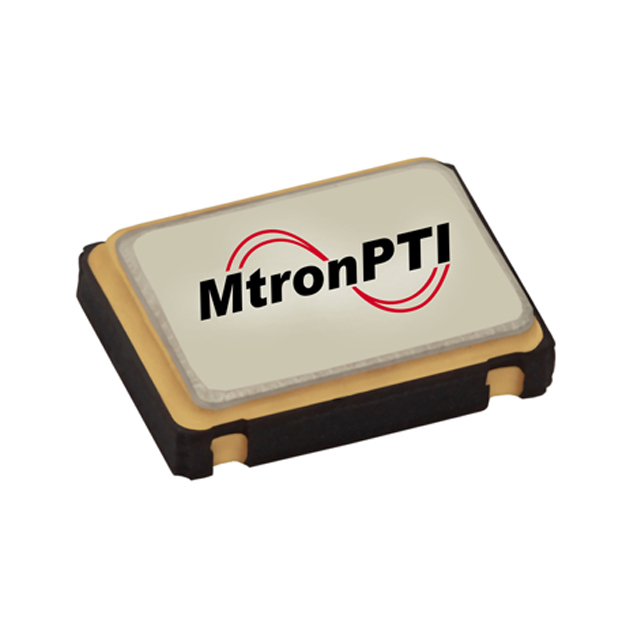

Same model may have multiple batches, images only for reference.
M253224TCN 24.000000 MTRONPTI – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

M253224TCN 24.000000

Part No M253224TCN 24.000000
Manufacturer MTRONPTI
Catalog Oscillators
Description 24 MHz XO (Standard) HCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Mfr MtronPTI
Series M2532
Packaging Bulk
Base Resonator Crystal
Type XO (Standard)
Frequency 24 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 20mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.047" (1.20mm)
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8542.31.0000
Win Source Part Number 1481294-M253224TCN 24.000000
Ultra Librarian 3D Model Ultra Librarian M253224TCN 24.000000 CAD Model
