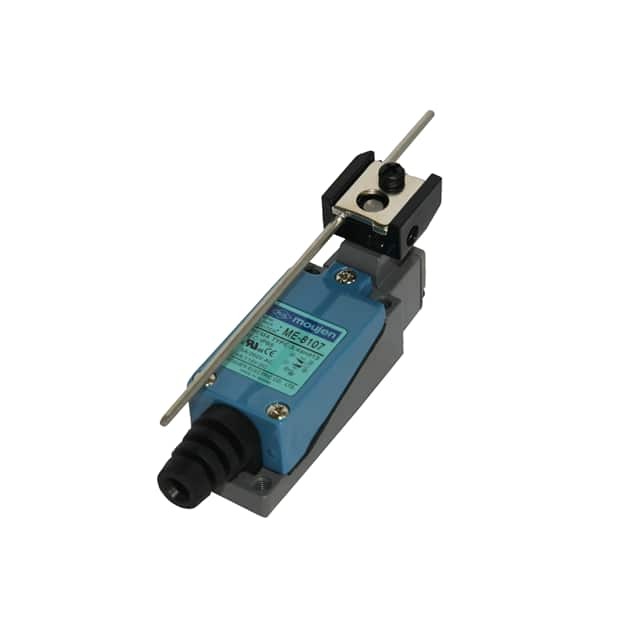

ME-8107

Part No ME-8107
Manufacturer Moujen
Catalog Snap Action, Limit Switches
Description SPDT-DB/DM Enclosed Limit Swtich
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr Moujen
Series ME
Package Tray
Product Status Active
Circuit SPDT (DB/DM)
Switch Function On-Mom
Current Rating (Amps) 5A (AC), 400mA (DC)
Voltage Rating - AC 250 V
Voltage Rating - DC 115 V
Actuator Type Side Rotary, Adjustable Rod
Mounting Type Chassis Mount
Termination Style Screw Terminal
Ingress Protection IP65 - Dust Tight, Water Resistant
Operating Force 203gf
Release Force 12gf
Pretravel 20°
Differential Travel 10°
Overtravel 75°
Temperature Range - Operating -15°C ~ 70°C
Electrical Life 300,000 Cycles
Mechanical Life 10,000,000 Cycles
Standard Package 10 pcs
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.50.9055
California Prop 65 Warning Information
Win Source Part Number 884513-ME-8107
Ultra Librarian 3D Model Ultra Librarian ME-8107 CAD Model

Description

The 884513-ME-8107 is a limit switch from the ME series by Moujen.

  • Termination Style: Screw Terminal
  • IP Rating: IP65
  • Voltage Rating: 250V AC and 115V DC
  • Package: Standard package of 10 pieces
  • Switch Configuration: SPDT (DB/DM)
  • Actuator Type: Side Rotary, Adjustable Rod
  • Electrical Life: 300,000 cycles
  • Mechanical Life: 10,000,000 cycles
  • Operating Temperature Range: -15°C to 70°C
  • Product Status: Active
