Same model may have multiple batches, images only for reference.

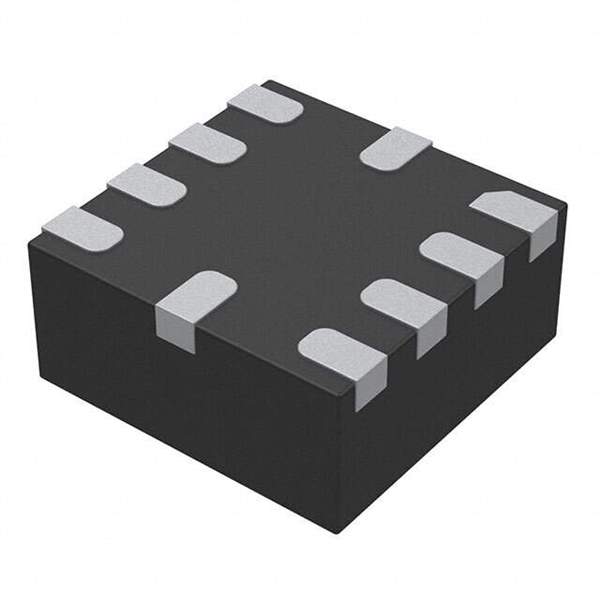

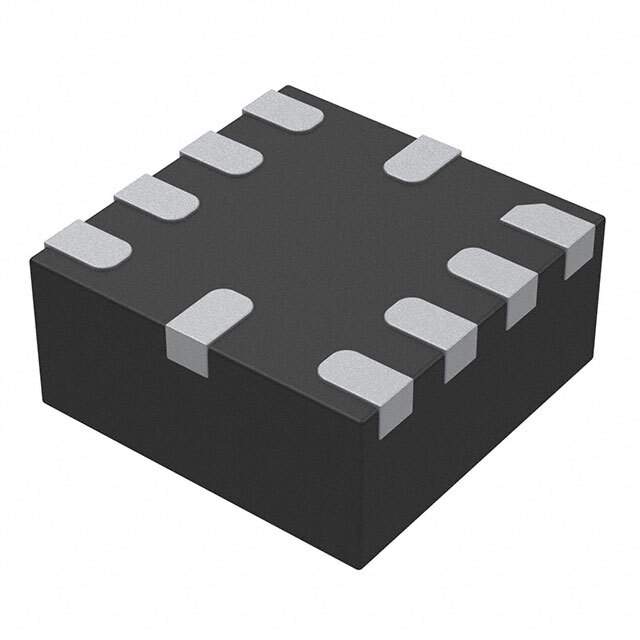

MPQ2735GG-Z Real Image
Same model may have multiple batches, images only for reference.

MPQ2735GG-Z

Part No MPQ2735GG-Z
Manufacturer Monolithic Power Systems Inc.
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description IC SWITCH SPDT DUAL 10QFN / 2 Circuit IC Switch 450mOhm 10-QFN (2x2)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Interface - Analog Switches, Multiplexers, Demultiplexers
Mfr Monolithic Power Systems Inc.
Series Automotive, AEC-Q100
Package Tape & Reel (TR)
Switch Circuit SPDT
Number of Circuits 2
On-State Resistance (Max) 450mOhm
Channel-to-Channel Matching (ΔRon) 10mOhm (Typ)
Voltage - Supply, Single (V+) 1.65V ~ 5.5V
Switch Time (Ton, Toff) (Max) 24ns, 20ns (Typ)
-3db Bandwidth 50MHz
Channel Capacitance (CS(off), CD(off)) 6pF
Crosstalk -70dB @ 100kHz
Mounting SMD (SMT)
Package / Case 10-TFQFN
Supplier Device Package 10-QFN (2x2)
Base Product Number MPQ2735
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
HTSUS 0000.00.0000
Standard Package 5,000
Win Source Part Number 972054-MPQ2735GG-Z
Ultra Librarian 3D Model Ultra Librarian MPQ2735GG-Z CAD Model

Description

The Monolithic Power Systems Inc. analog switch with the Win Source Part Number 972054-MPQ2735GG-Z is designed for automotive applications.

  • Switch Circuits: two
  • Package: 10-TFQFN package
  • Maximum On-State Resistance: 450mOhm
  • -3db Bandwidth: 50MHz
  • Channel-to-Channel Matching: 10mOhm (Typ)
  • Crosstalk: -70dB @ 100kHz
  • Voltage Supply: 1.65V to 5.5V
  • Switch Time: 24ns, 20ns (Typ)
  • ECCN: EAR99 compliant
  • MSL Level: 1 (Unlimited)
