Same model may have multiple batches, images only for reference.

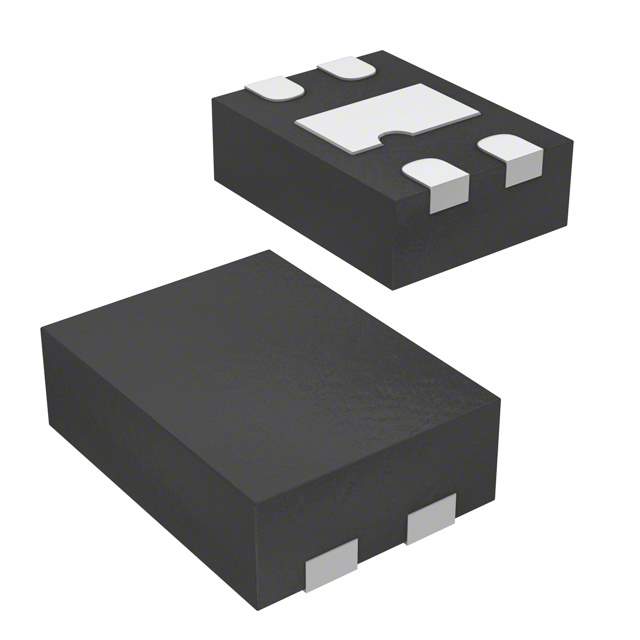

MP62040DQFU-1-LF-P Real Image
Same model may have multiple batches, images only for reference.

MP62040DQFU-1-LF-P

Part No MP62040DQFU-1-LF-P
Manufacturer Monolithic Power Systems Inc.
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC PWR SWITCH P-CHAN 1:1 4UTQFN / Power Switch/Driver 1:1 P-Channel 2A 4-UTQFN (1.6x1.2)
Datasheet
MP62040DQFU-1-LF-P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Power Distribution Switches, Load Drivers
Mfr Monolithic Power Systems Inc.
Package Tape & Reel (TR)
Switch Type General Purpose
Number of Outputs 1
Output Configuration High Side
Output Type P-Channel
Interface On/Off
Voltage - Load 1.7V ~ 5.5V
Supply Voltage - Operating Not Required
Current - Output (Max) 2A
Rds On (Typ) 85mOhm
Features Load Discharge, Slew Rate Controlled
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Supplier Device Package 4-UTQFN (1.6x1.2)
Package / Case 4-UFDFN Exposed Pad
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 1589-1202-2,1589-1202-6,1589-1202-1
Standard Package 500
Win Source Part Number 960405-MP62040DQFU-1-LF-P
Ultra Librarian 3D Model Ultra Librarian MP62040DQFU-1-LF-P CAD Model

Description

The Monolithic Power Systems Inc. MP62040DQFU-1-LF-P is a P-channel power distribution switch with a maximum output current of 2A. Bold the product name MP62040DQFU-1-LF-P and manufacturer Monolithic Power Systems Inc.

  • Channel Type: P-channel
  • Maximum Output Current: 2A
  • Output Configuration: High-Side
  • Voltage Load: 1.7V to 5.5V
  • Slew Rate: Controlled
  • Load Discharge: Yes
  • Package Size: 4-UFDFN Exposed Pad
  • Mounting Type: Surface Mountable
  • Temperature Range: -40°C to 85°C
