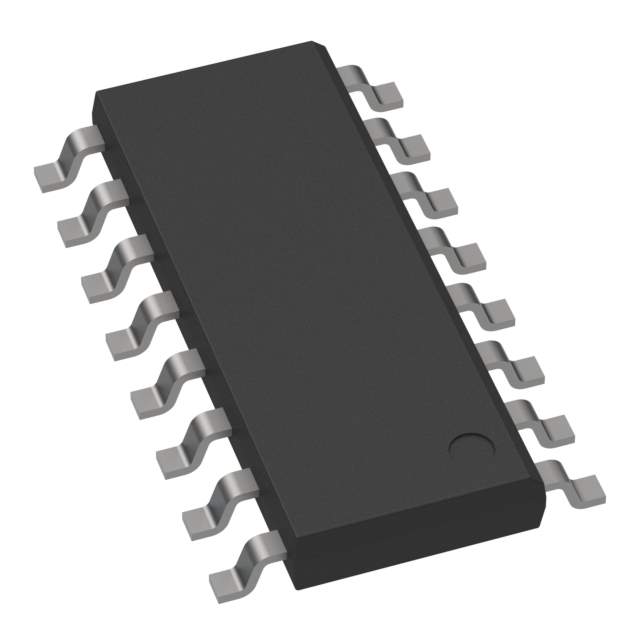

MP4603ES-LF-Z Real Image
Same model may have multiple batches, images only for reference.

MP4603ES-LF-Z

Part No MP4603ES-LF-Z
Manufacturer Monolithic Power Systems Inc.
Catalog Board Mount LED Drivers
Description IC LED DRIVER / White LED Driver forLarge LCD TV Backlights
Datasheet
MP4603ES-LF-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Monolithic Power Systems Inc.
Packaging Reel package
Type DC DC Regulator
Topology Step-Down (Buck), Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 1
Voltage Supply MIN 4.5V
Voltage Supply MAX 80V
Output Current per Channel 2.5A (Switch)
Frequency 280kHz
Dimming Analog, PWM
Applications Backlight, Lighting
Operating Temperature Range -20°C ~ 85°C (TA)
Mounting SMD
Package 16-SOIC (0.154", 3.90mm Width)
Manufacturer Package 16-SOIC
Win Source Part Number 789172-MP4603ES-LF-Z
Popularity Medium
Supply and Demand Status Limited
Family Name MP4603
Introduction Date April 27, 2012
ECCN EAR99
Country of Origin China
Ultra Librarian 3D Model Ultra Librarian MP4603ES-LF-Z CAD Model

Description

The MP4603ES-LF-Z is a DC DC Regulator type in a 16-SOIC (0.154", 3.90mm Width) package, manufactured by Monolithic Power Systems Inc.

  • Operating Temperature: -20°C ~ 85°C (TA)
  • Applications: Backlight and lighting
  • Internal Switch(s): Yes
  • Topology: Step-down (Buck), Step-up (Boost)
  • Outputs: 1
  • Dimming: Analog, PWM
  • Voltage Supply MAX: 80V
  • Voltage Supply MIN: 4.5V
  • Output Current: 2.5A (Switch) per channel
  • Supply and Demand: Limited
