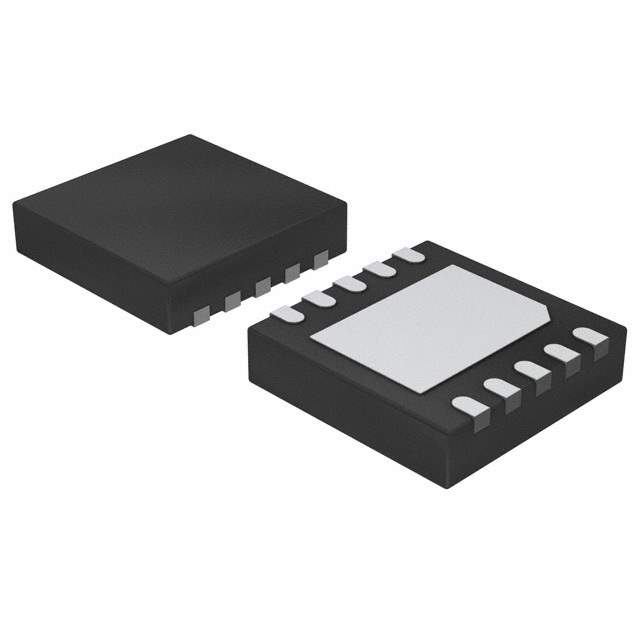

MP1924HR-LF-P

Name: MP1924HR-LF-P
Brand: Monolithic Power Systems Inc.
SKU: 959134
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	MP1924HR-LF-P
Manufacturer	Monolithic Power Systems Inc.
Catalog	PMIC - Gate Drivers
Description	IC GATE DRVR HALF-BRIDGE 10QFN / Half-Bridge Gate Driver IC Non-Inverting 10-QFN (4x4)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs)>PMIC - Gate Drivers
Mfr	Monolithic Power Systems Inc.
Package	Tape & Reel (TR)
Driven Configuration	Half-Bridge
Channel Type	Independent
Number of Drivers	2
Gate Type	N-Channel MOSFET
Voltage - Supply	9V ~ 16V
Logic Voltage - VIL, VIH	1V, 2.4V
Current - Peak Output (Source, Sink)	4A, 4A
Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	118 V
Rise / Fall Time (Typ)	15ns, 12ns
Temperature Range - Operating	-40°C ~ 125°C (TJ)
Mounting	SMD (SMT)
Package / Case	10-VDFN Exposed Pad
Supplier Device Package	10-QFN (4x4)
Base Product Number	MP1924
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Standard Package	500
Win Source Part Number	959134-MP1924HR-LF-P
Ultra Librarian 3D Model	Ultra Librarian MP1924HR-LF-P CAD Model

Alternative Products

Description

The MP1924HR-LF-P is an independent half-bridge gate driver IC from Monolithic Power Systems Inc.

Input Type: Non-Inverting
Channels: Two
Gate Type: N-Channel MOSFET
Logic Voltage - VIL, VIH: 1V, 2.4V
Maximum High Side Voltage: 118V
Rise/Fall Time (Typ): 15ns, 12ns
Peak Output Current (Source): 4A
Peak Output Current (Sink): 4A
Voltage Supply: 9V~16V
Package: 10-VDFN Exposed Pad
Suitable for: PMIC - Gate Drivers applications
