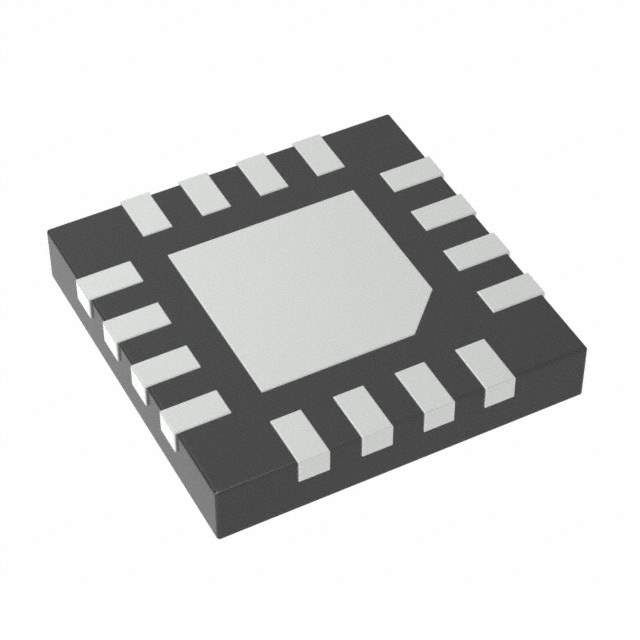

MP1529DR-LF-P Real Image
Same model may have multiple batches, images only for reference.

MP1529DR-LF-P

Part No MP1529DR-LF-P
Manufacturer Monolithic Power Systems Inc.
Catalog PMIC - LED Drivers
Description IC LED DRIVER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Monolithic Power Systems Inc.
Packaging Tape and Reel
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 3
Voltage - Supply (Minimum) 2.7V
Voltage - Supply (Maximum) 5.5V
Voltage - Output 25V
Current - Output / Channel 30mA, 150mA (Flash)
Frequency 1.2MHz
Dimming PWM
Applications Backlight, Camera Flash
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 16-VQFN Exposed Pad
Supplier Device Package 16-QFN (4x4)
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Win Source Part Number 755096-MP1529DR-LF-P
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MP1529DR-LF-P CAD Model

Description

The MP1529DR-LF-P is a DC DC regulator manufactured by Monolithic Power Systems Inc.

  • Applications: Backlight and camera flash
  • Voltage Output: 25V
  • Frequency: 1.2MHz
  • Current Output per Channel: 30mA, 150mA (flash)
  • Topology: Step-up (boost)
  • Package: 16-QFN (4x4)
  • Temperature Range: -40°C to 85°C
