Same model may have multiple batches, images only for reference.

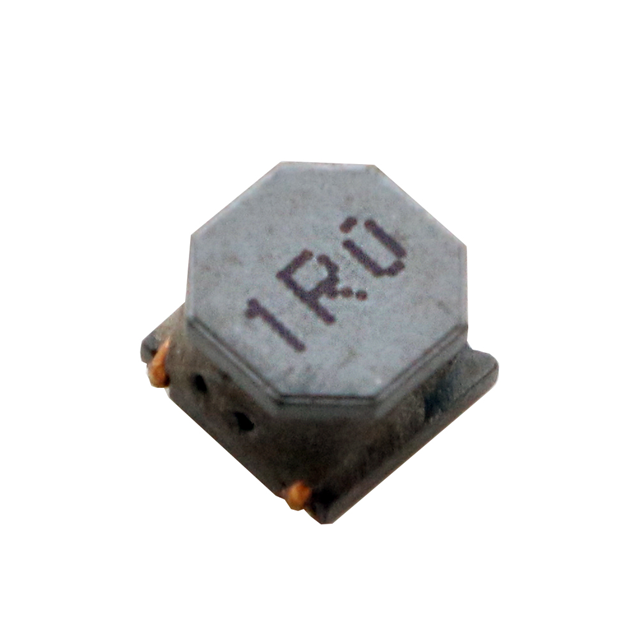

MPL-SE4030-1R0 Real Image
Same model may have multiple batches, images only for reference.

MPL-SE4030-1R0

Part No MPL-SE4030-1R0
Manufacturer Monolithic Power Systems Inc.
Catalog Fixed Inductors
Description FIXED IND 1UH 6.3A 12.5 MOHM SMD / 1 µH Semi-Shielded Inductor 6.3 A 12.5mOhm Nonstandard, 2 Lead
Datasheet
MPL-SE4030-1R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Monolithic Power Systems Inc.
Series MPL-SE
Package Tape & Reel
Inductance 1 µH
Current Rating (Amps) 6.3 A
Current - Saturation (Isat) 7.5A
Shielding Semi-Shielded
DC Resistance (DCR) 12.5mOhm
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard, 2 Lead
Size / Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.118" (3.00mm)
Base Product Number MPL-SE4030
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1337723-MPL-SE4030-1R0
Ultra Librarian 3D Model Ultra Librarian MPL-SE4030-1R0 CAD Model

Description

The MPL-SE4030-1R0 is a fixed inductor from the MPL-SE series. MPL-SE4030-1R0 is the product.

  • Size: 0.157" L x 0.157" W (4.00mm x 4.00mm)
  • Height: 0.118" (3.00mm)
  • Inductance: 1 µH
  • DC Resistance (DCR): 12.5mOhm
  • Current Rating: 6.3 A
  • Frequency: 100 kHz
  • Package: Tape and reel
  • Shielding: Semi-shielded
  • Mounting: Surface mountable
  • Temperature Range: -40°C to 125°C
