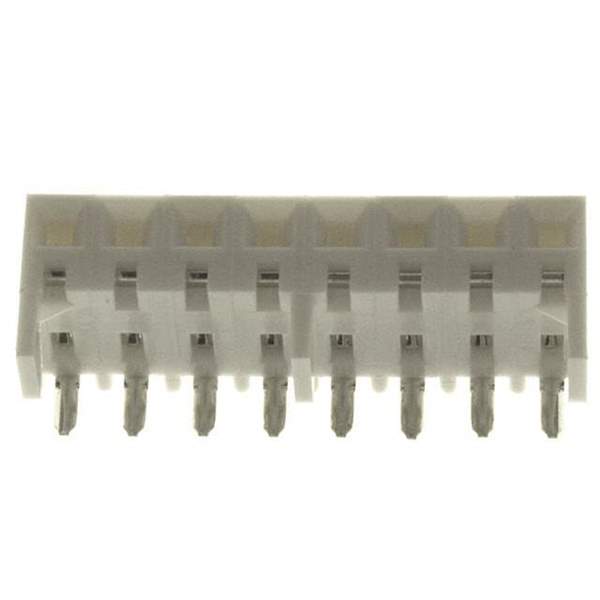

9481084 Real Image
Same model may have multiple batches, images only for reference.

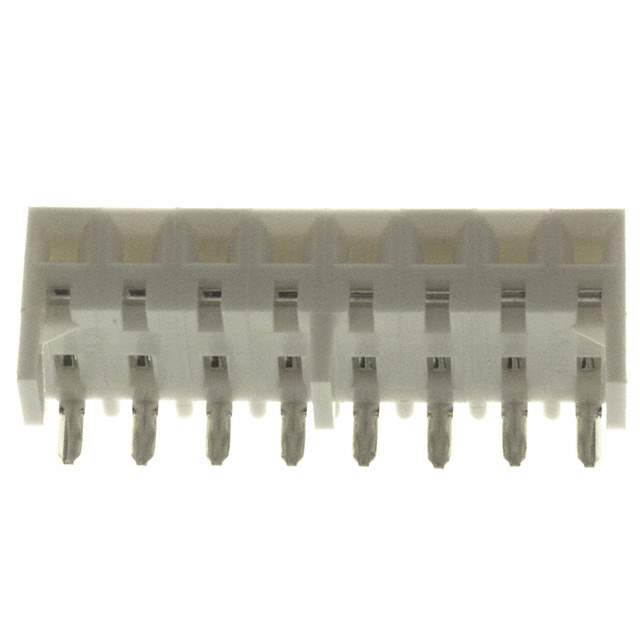

9481084

Part No 9481084
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Molex
Series KK396, 41815
Package Tray
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 8
Number of Positions Loaded All
Pitch - Mating 0.156" (3.96mm)
Number of Rows 1
Mounting Type Board Edge, Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 60.0µin (1.52µm)
Insulation Color Natural
Insulation Height 0.308" (7.82mm)
Contact Length - Post 0.145" (3.68mm)
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Board Hooks
Current Rating (Amps) 5A
Voltage Rating 600V
Applications Automotive, General Purpose, Medical, Telecommunications
Insulation Material Polyester
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 60.0µin (1.52µm)
Base Product Number 000948
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1316166-9481084
Ultra Librarian 3D Model Ultra Librarian 9481084 CAD Model

Description

The Molex 1316166-9481084 is an 8-position rectangular connector that has a receptacle gender and female sockets contact type.

  • Positions: 8
  • Gender: Receptacle
  • Contact Type: Female sockets
  • Voltage Rating: 600V
  • Current Rating: 5A
  • Mounting: Board edge, through hole, right angle
  • Temperature Range: -40°C to 105°C
  • Contact Material: Phosphor bronze
  • Fastening Type: Locking ramp
  • Package: Tray
  • Applications: Automotive, general purpose, medical, and telecommunications
