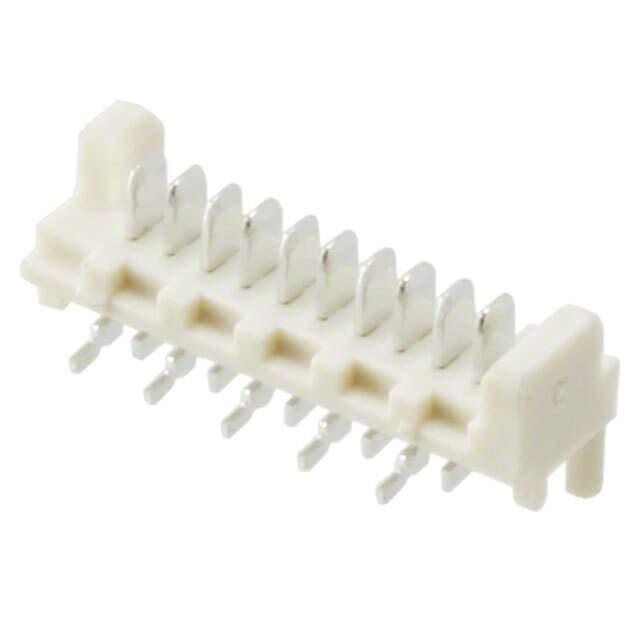

90814-0910 Real Image
Same model may have multiple batches, images only for reference.

90814-0910

Part No 90814-0910
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Header Connector, pcb Mount, recept, 10 Contacts, pin, 0.05 Pitch, surface Mount Terminal
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Material Brass
Contact Plating Tin
Contact Resistance 15 mΩ
Country of Origin MY
Current Rating 2.4 A
Gender Male
Glow Wire Compliant Non-compliant
Housing Material Thermoplastic
Lead Pitch 1.27 mm
Maximum Operating Temperature 105 °C
Max Voltage Rating (DC) 250.25 kV
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Circuits 10
Number of Contacts 10
Number of Positions 10
Number of Rows 1
Orientation Vertical
Packaging Tape and Reel
Pitch 1.27 mm
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Termination SMD/SMT
Voltage Rating 250 V
Voltage Rating (AC) 250 V
Win Source Part Number 1041581-90814-0910
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 90814-0910 CAD Model

Description

The Molex, LLC 10-position circular connector housing is designed to provide a secure and reliable connection for electronic components.

  • Positions: 10
  • Type: Circular Connector Housing
  • Pitch: 1.27 mm
  • Rows: 1
  • Current Rating: 2.4 A
  • Voltage Rating: 250 V
  • Contact Material: Brass
  • Housing Material: Thermoplastic
  • Contact Plating: Tin
  • Contact Resistance: 15 mΩ
  • RoHS Compliant: Yes
  • Operating Temperature: -40 to 105 °C
  • Mounting: Surface Mount
  • Orientation: Vertical
  • Category: Circular Connectors - Housings
