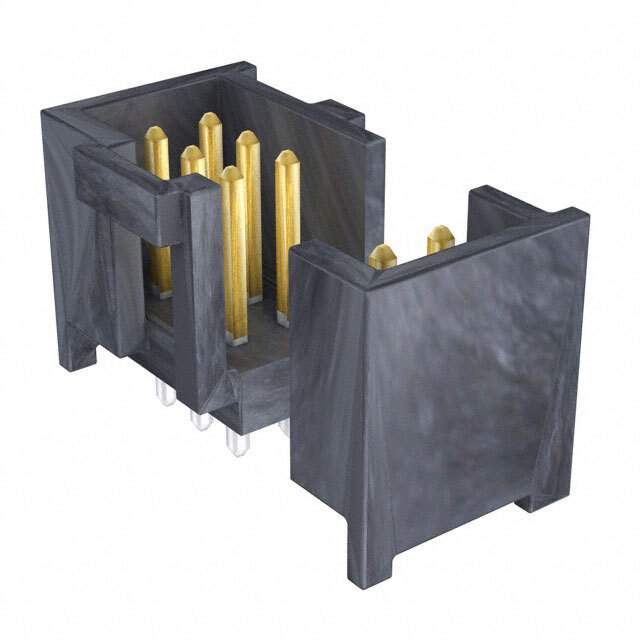

Same model may have multiple batches, images only for reference.

90130-1234

Name: 90130-1234
Brand: Molex, LLC
SKU: 31429
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	90130-1234
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER 34POS .100" STR GOLD
Datasheet	90130-1234 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex, LLC
Packaging	Tray
Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	2.54mm
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.266" (6.75mm)
Contact Length - Post	0.114" (2.90mm)
Overall Contact Length	0.510" (12.95mm)
Insulation Height	0.429" (10.90mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15μin (0.38μm)
Contact Finish - Post	Tin
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Contact Finish Thickness - Post	118.1μin (3.00μm)
Applications	Automotive, General Purpose
Win Source Part Number	052820-90130-1234
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 90130-1234 CAD Model

Alternative Products

Description

Overview

The 90130-1234 component is a high-performance connector offering reliable and efficient power and signal transmission, designed to meet the demands of modern electronics.

Features and Benefits

Compact Footprint: Perfect for densely packed applications.
Secure Connection: Ensures consistent connectivity and data transfer.
RoHS Compliant: Environmentally friendly, complying with global standards.

Applications

Consumer Devices
Data Centers
Renewable Energy Systems
