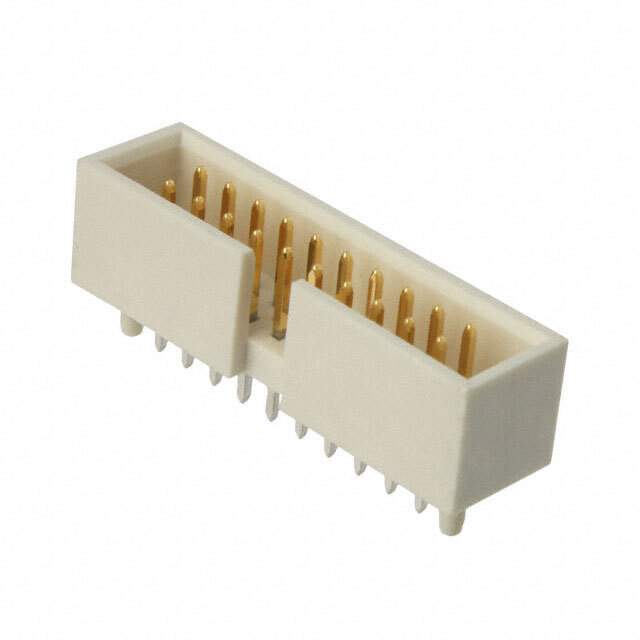

Same model may have multiple batches, images only for reference.

87834-2011

Name: 87834-2011
Brand: Molex, LLC
SKU: 30116
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	87834-2011
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CGRID HDR W/PG/SLT 20CKT
Datasheet	87834-2011 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex, LLC
Packaging	Tray
Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	2.54mm
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.135" (3.43mm)
Overall Contact Length	0.490" (12.45mm)
Insulation Height	0.365" (9.27mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	5.11μin (0.13μm)
Contact Finish - Post	Tin
Insulation Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Features	Board Guide, Keying Slot
Material Flammability Rating	UL94 V-0
Insulation Color	Beige
Contact Finish Thickness - Post	98.4μin (2.5μm)
Applications	Automotive, General Purpose, Lighting, Medical, Telecommunications
Win Source Part Number	052819-87834-2011
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 87834-2011 CAD Model

Alternative Products

Description

Product Description

The 87834-2011 connector is tailored for applications that require reliable connections in various electronic systems. Marked by its precision design, this component ensures stability and high performance.

Features and Benefits

Compact size allows for integration into tight spaces.
Highly resistant to environmental stressors.
Easy maintenance due to its user-friendly configuration.

Applications and Projects

Industrial automation systems
Medical devices
Networking equipment
Embedded systems

The 87834-2011 connector is ideal for use in projects where durability and compactness are essential.
