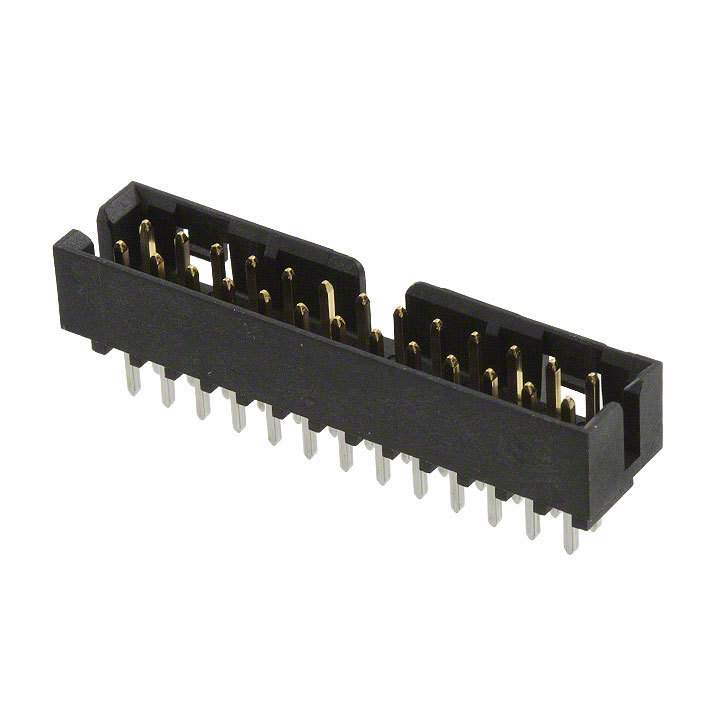

878312620 Molex, LLC
Same model may have multiple batches, images only for reference.

878312620

Part No 878312620
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 26POS 2MM VERT GOLD
Datasheet
878312620 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Tube/Rail
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Number of Positions 26
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.141" (3.60mm)
Contact Length - Post 0.098" (2.50mm)
Insulation Height 0.252" (6.40mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15μin (0.38μm)
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon, Glass Filled
Features Keying Slot
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 74.8μin (1.90μm)
Applications Automotive, General Purpose, Telecommunications
Win Source Part Number 1065294-878312620
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 878312620 CAD Model

Description

The Molex, LLC header connector is a high-quality electronic component that is ideal for use in a variety of applications.

  • Win Source Part Number: 1065294-878312620
  • Positions: 26
  • Operating Temperature: -55°C to 125°C
  • Supply and Demand: Balanced
  • Packaging: Tube/Rail
