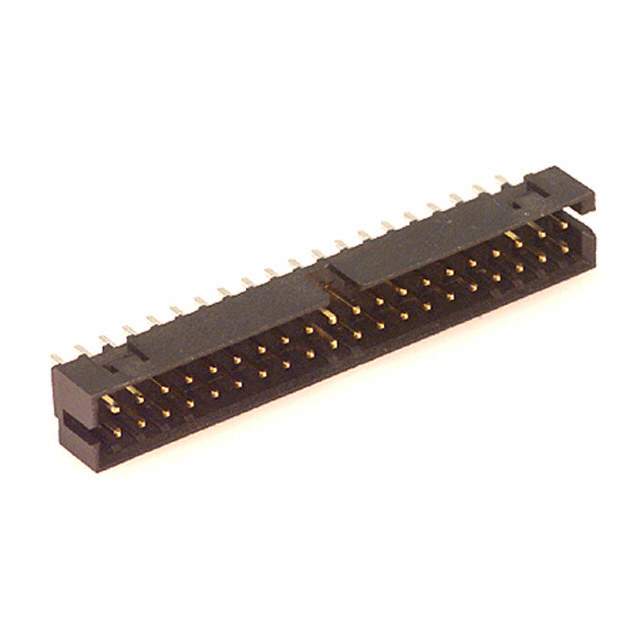

87831-4020 Real Image
Same model may have multiple batches, images only for reference.

87831-4020

Part No 87831-4020
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 40POS 2MM VERT GOLD
Datasheet
87831-4020 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex Connector Corporation
Packaging Tube/Rail
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Number of Positions 40
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.141" (3.60mm)
Contact Length - Post 0.098" (2.50mm)
Insulation Height 0.252" (6.40mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15μin (0.38μm)
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon, Glass Filled
Features Keying Slot
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 74.8μin (1.90μm)
Applications Automotive, General Purpose, Telecommunications
Win Source Part Number 1010453-87831-4020
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 87831-4020 CAD Model

Description

The 1010453-87831-4020 is a 40-position rectangular connector header with male pins from Molex.

  • Pitch: 0.079 inches (2.00mm)
  • Application: Board-to-board or cable
  • Shrouding: Shrouded-4 wall
  • Keying Feature: Keying slot
  • Contact Finish: Gold
  • Contact Finish Thickness (Mating): 15μin (0.38μm)
  • Contact Finish Thickness (Post): 74.8μin (1.90μm)
  • Voltage and Current Rating: Not specified
  • Temperature Range: -40°C to 105°C
  • Applications: Automotive, general-purpose, and telecommunications
  • Mounting: Through Hole
  • Packaging: Tube/Rail
