Same model may have multiple batches, images only for reference.

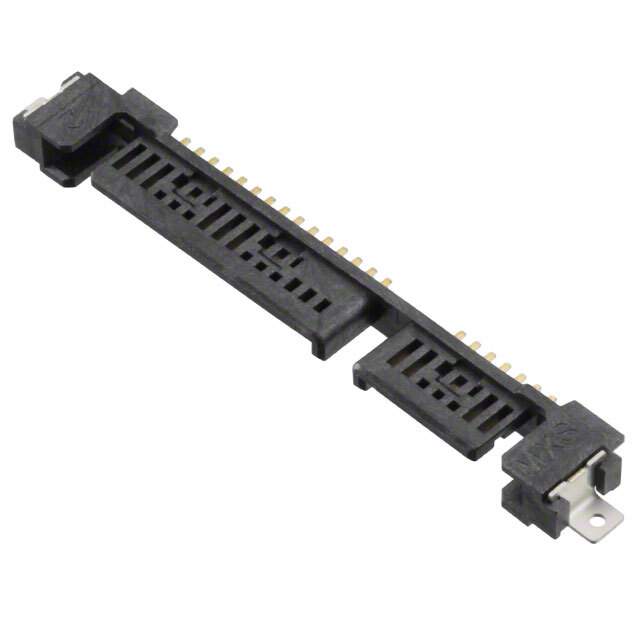

87703-0001 Real Image
Same model may have multiple batches, images only for reference.

87703-0001

Part No 87703-0001
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn SATA PL 15Power/7Signal POS 1.27mm Solder RA SMD 22 Terminal 1 Port T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type SATA
Contact Material Gold
Contact Plating Gold
Contact Resistance 30 mΩ
Country of Origin US
Current Rating 1.5 A
Depth 5.8 mm
Flammability Rating UL94 V-0
Gender Male
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Height 5.6 mm
Housing Color Grey
Housing Material Thermoplastic
Insulation Resistance 1 GΩ
Lead Free Yes
Lead Pitch 1.27 mm
Length 50.93 mm
Material Thermoplastic
Max Current Rating 1 A
Maximum Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Cable, Surface Mount
Number of Circuits 22
Number of Contacts 22
Number of Ports 1
Number of Positions 22
Number of Rows 1
Number of Terminals 22
Orientation Right Angle, Vertical
Pitch 1.27 mm
Plating Gold
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Termination SMD/SMT
Voltage Rating 30 V
Voltage Rating (DC) 30 V
Win Source Part Number 994841-87703-0001
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 87703-0001 CAD Model

Description

The Molex 994841-87703-0001 is a 22 position, male SATA connector with a pitch of 1.27 mm.

  • Positions: 22
  • Gender: male
  • Application: SATA
  • Pitch: 1.27 mm
  • RoHS Compliant: yes
  • Flammability Rating: UL94 V-0
  • Low Halogen: yes
  • Voltage Rating: 30 V
  • Current Rating: 1.5 A
  • Contact Resistance: 30 mΩ
  • Supply: short supply
