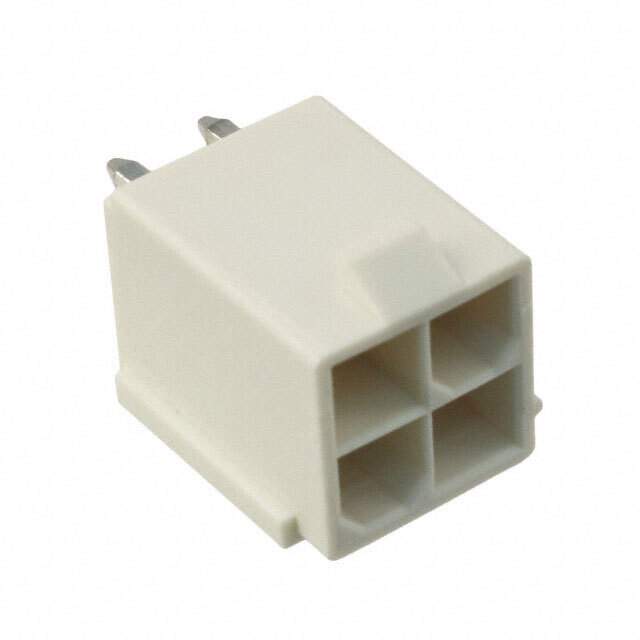

87427-0442 Real Image
Same model may have multiple batches, images only for reference.

87427-0442

Part No 87427-0442
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Header Connector, pcb Mount, recept, 4 Contacts, pin, 0.165 Pitch, pc Tail Terminal, polarized Lck
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Natural
Contact Gender Male
Contact Material Brass
Contact Plating Tin
Contact Resistance 10 mΩ
Country of Origin IN
Current Rating 8 A
Depth 11.4 mm
Flammability Rating UL94 V-0
Gender Receptacle
Glow Wire Compliant Non-compliant
Housing Color Natural
Housing Material Thermoplastic
Insulation Resistance 1 GΩ
Lead Pitch 4.2 mm
Length 10.8 mm
Max Operating Temperature 105 °C
Max Voltage Rating (AC) 600 V
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 4
Number of Contacts 4
Number of Ports 1
Number of Positions 4
Number of Rows 2
Number of Terminals 4
Orientation Vertical, Right Angle
Packaging Bulk
Pitch 4.2 mm
Plating Tin
Radiation Hardening No
RoHS Compliant
Row Spacing 4.2 mm
Termination Solder
Voltage Rating 600 V
Voltage Rating (DC) 600 V
Win Source Part Number 1196920-87427-0442
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 87427-0442 CAD Model

Description

The 87427-0442 is a 4-position circular connector housing used for various applications from Molex, LLC.

  • Pitch: 4.2mm
  • Voltage Rating: 600V
  • Housing Material: Thermoplastic
  • Color: Natural
  • Contact Material: Brass
  • Contact Resistance: 10mΩ
  • RoHS Compliant: Yes
  • Flammability Rating: UL94 V-0
  • Supply and Demand Status: Limited
