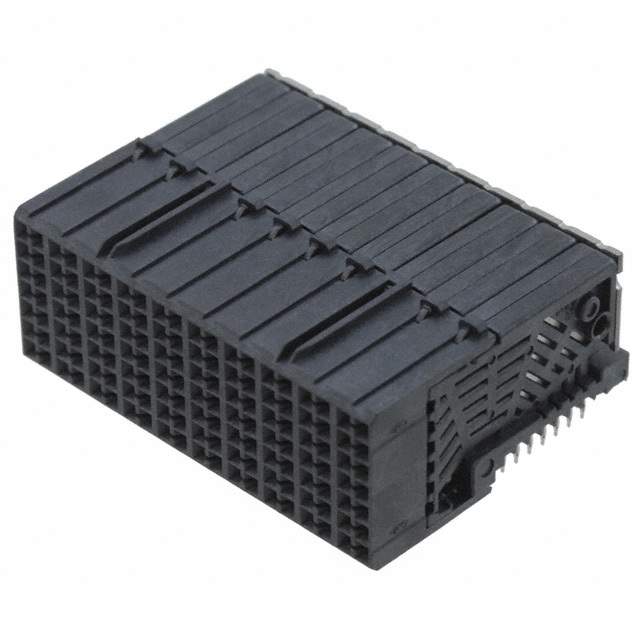

76020-1010

Part No 76020-1010
Manufacturer Molex, LLC
Catalog Backplane Connectors
Description Conn Backplane RCP 140 POS 3.7mm Solder RA Thru-Hole GbX I-Trac™ Frame
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Receptacle
Contact Plating Gold
Country of Origin US
Current Rating 1 A
Data Rate 12 Gbps
Flammability Rating UL94 V-0
Halogen Free Low Halogen
Housing Material Thermoplastic
Material Thermoplastic
Maximum Operating Temperature 80 °C
Max Voltage Rating (DC) 120.12 kV
Min Operating Temperature -55 °C
Mount Edge, Through Hole
Number of Circuits 140
Number of Columns 10
Number of Contacts 140
Number of Positions 140
Number of Rows 7
Orientation Right Angle
Pitch 3.7 mm
Plating Tin
Radiation Hardening No
RoHS Compliant
Shielding Unshielded
Termination Solder
Voltage Rating 120 V
Voltage Rating (AC) 120 V
Win Source Part Number 1040758-76020-1010
Categories Backplane Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 76020-1010 CAD Model

Description

The 1040758-76020-1010 is a 140-pin backplane connector from Molex, LLC.

  • Pins: 140
  • Connector Type: Backplane
  • Manufacturer: Molex, LLC
  • Pitch: 3.7 mm
  • Mounting: Edge and Through-Hole
  • Current Rating: 1 A
  • Maximum Voltage Rating: 120.12 kV
  • Supply and Demand Status: Shortage
  • Operating Temperature Range: -55 °C to 80 °C
