Same model may have multiple batches, images only for reference.

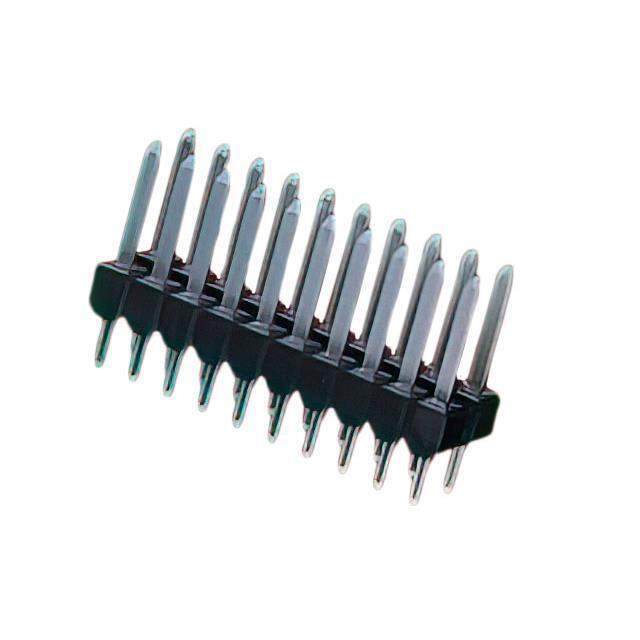

0757575481 Real Image
Same model may have multiple batches, images only for reference.

0757575481

Part No 0757575481
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 16POS 3.5MM / Connector Header Through Hole 16 position 0.138" (3.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Tube
Connector Type Header, Breakaway
Contact Type Male Blade
Pitch - Mating 0.138" (3.50mm)
Number of Positions 16
Number of Rows 2
Row Spacing - Mating 0.236" (6.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Unshrouded
Mounting Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.633" (16.09mm)
Contact Length - Post 0.120" (3.05mm)
Overall Contact Length 0.931" (23.64mm)
Insulation Height 0.177" (4.50mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 59.0µin (1.50µm)
Contact Finish - Post Tin
Contact Material Cartridge Brass
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 59.0µin (1.50µm)
Applications Automotive
Base Product Number 075757
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 75757-5481,0757575481-ND,757575481,WM20449
Standard Package 266
Win Source Part Number 1332993-0757575481
Ultra Librarian 3D Model Ultra Librarian 0757575481 CAD Model

Description

The 0757575481 is a male pin header connector manufactured by Molex.

  • Application: Automotive
  • Pitch: 0.138 inches
  • Contact Finish: Tin
