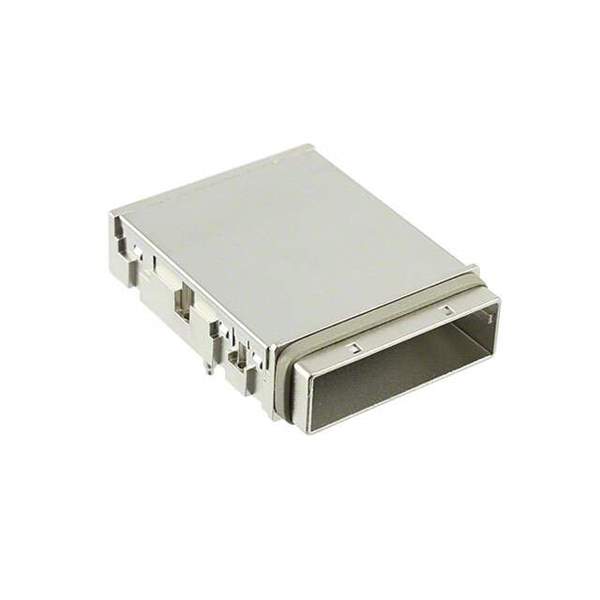

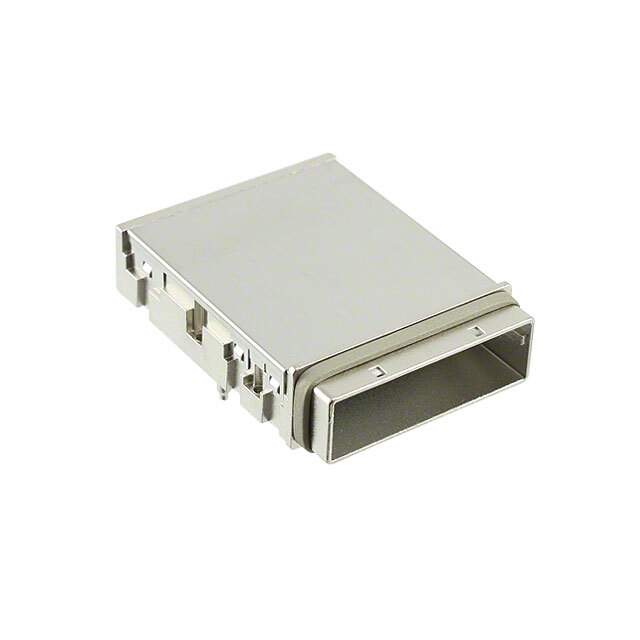

75581-0002 Real Image
Same model may have multiple batches, images only for reference.

75581-0002

Part No 75581-0002
Manufacturer Molex, LLC
Catalog OEM Parts (0 - 9)
Description External PCI Express Cable Assemblies 136Ckt R/A Press-Fit Cage and Conn. Assy.
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Receptacle
Contact Material Copper
Contact Plating Gold
Country of Origin US
Current Rating 500 mA
Features Shielded
Gender Female
Halogen Free Low Halogen
Housing Material Thermoplastic
Lead Free Yes
Lead Pitch 800 µm
Maximum Operating Temperature 85 °C
Min Operating Temperature -40 °C
Mount Surface Mount, Through Hole
Number of Circuits 136
Number of Contacts 136
Number of Positions 136
Orientation Right Angle
Pitch 800 µm
RoHS Compliant
Termination Press-Fit
Voltage Rating (AC) 30 V
Win Source Part Number 1030252-75581-0002
Categories OEM Parts(0-9)
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 75581-0002 CAD Model

Description

The 1030252-75581-0002 is a 136-position shielded female receptacle connector manufactured by Molex, LLC.

  • Positions: 136
  • Type: Shielded Female Receptacle Connector
  • Pitch: 800μm
  • Current Rating: 500mA
  • Voltage Rating: 30V AC
  • Maximum Operating Temperature: 85°C
  • Halogen Content: Low
  • RoHS Compliant: Yes
